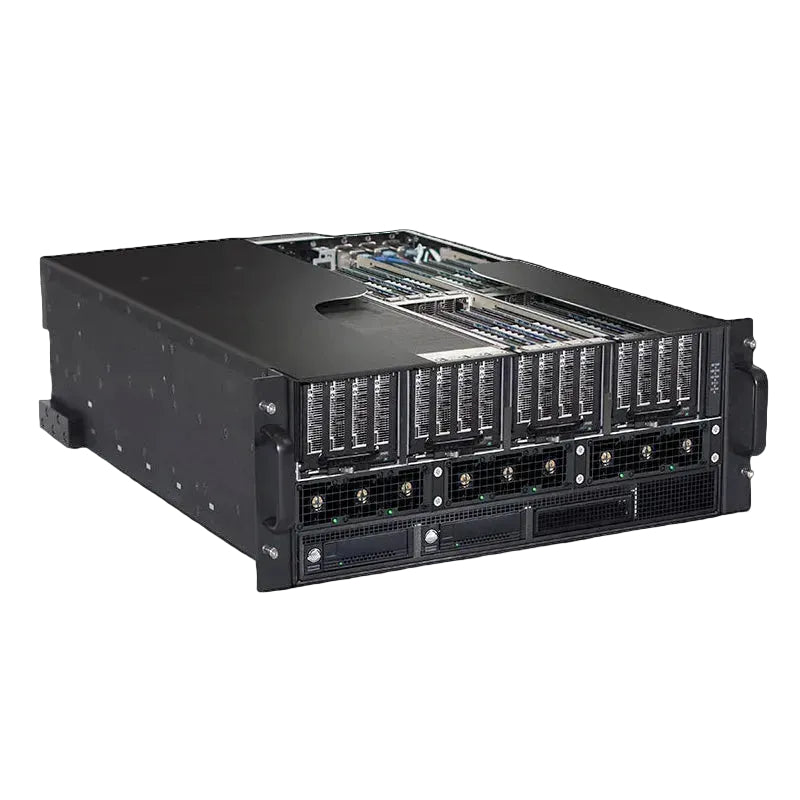

FSAn-4R
-
The high-performance, field-ready FSAn-4R (Ruggedized) NVMe All-Flash Array provides a new level of performance for applications such as real-time HPC, high-speed data recording, analytics and big data. The FSAn-4R rugged version is deployed in broadcast trucks, ground stations and surveillance aircraft. The FSAn-4 family provides a quantum leap in performance and application flexibility. it uses the highest performance PCIe NVMe flash with PCIe 3.0 x8 lanes for double the bandwidth of 2.5” NVMe. In addition, it includes features such as hot swap, Follow Me for RAID volume portability and front loading.
-
Features:
- 4U MIL-STD ruggedized system
- Supports high-density PCIe NVMe flash, up to 256 TB raw (200 TB usable)
- Four lightweight removable data canisters with capacities up to 50TB
- Each data canister weighs less than 6.5lbs
- Supports up to 5 million IOPS
- Provides up to 30 GB/second throughput
- Supports four 100Gb/s EDR Infiniband, 100Gb/s Ethernet or 32GbFC interfaces
- Supports iSCSI, FC and SRP protocols
- IPMI system management
- Supports OSS ION Accelerator™ software
