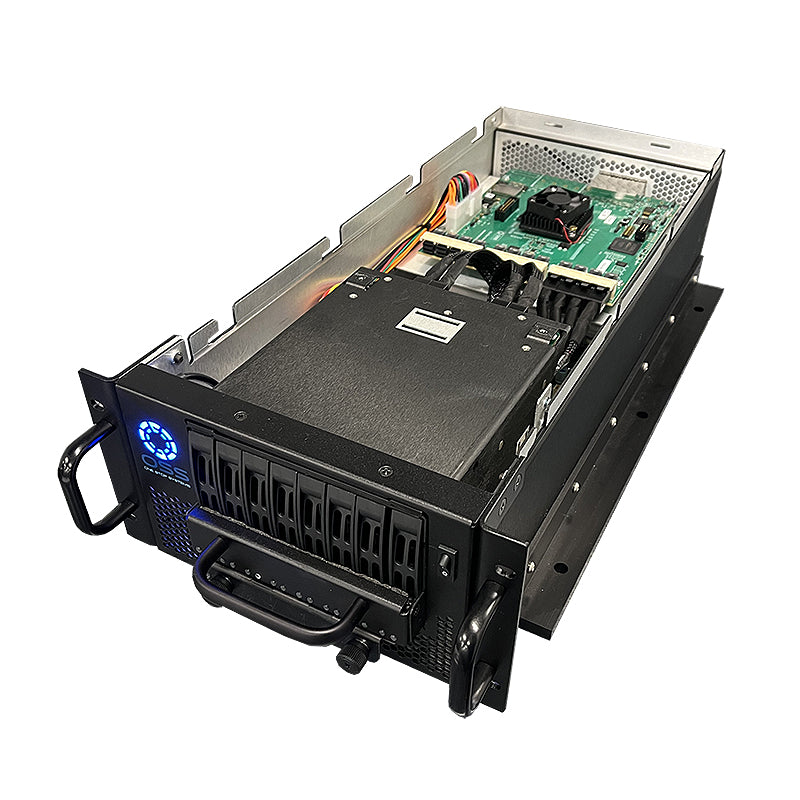

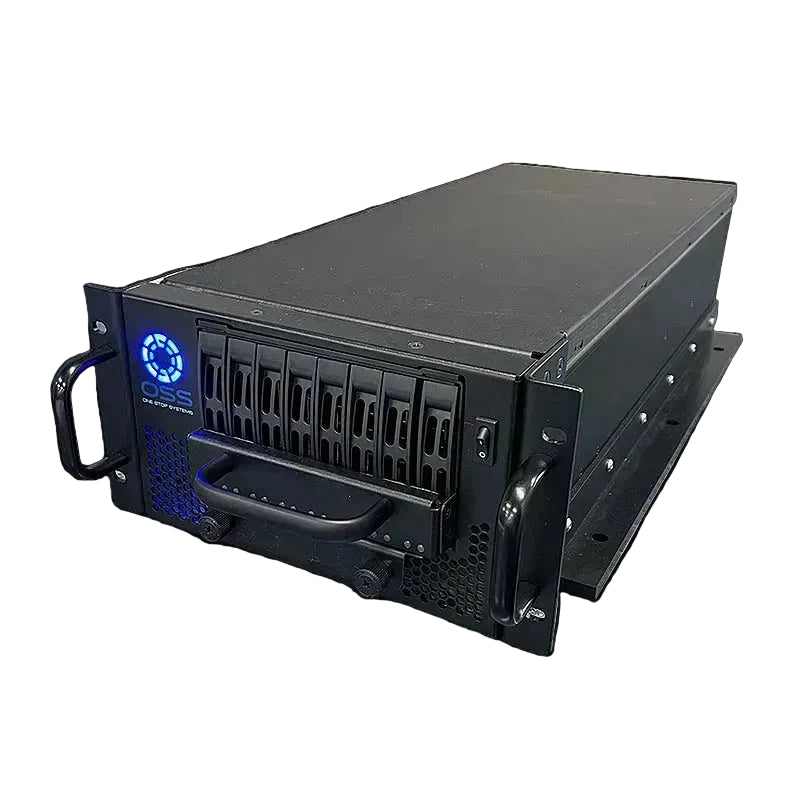

Centauri Storage Expansion
-

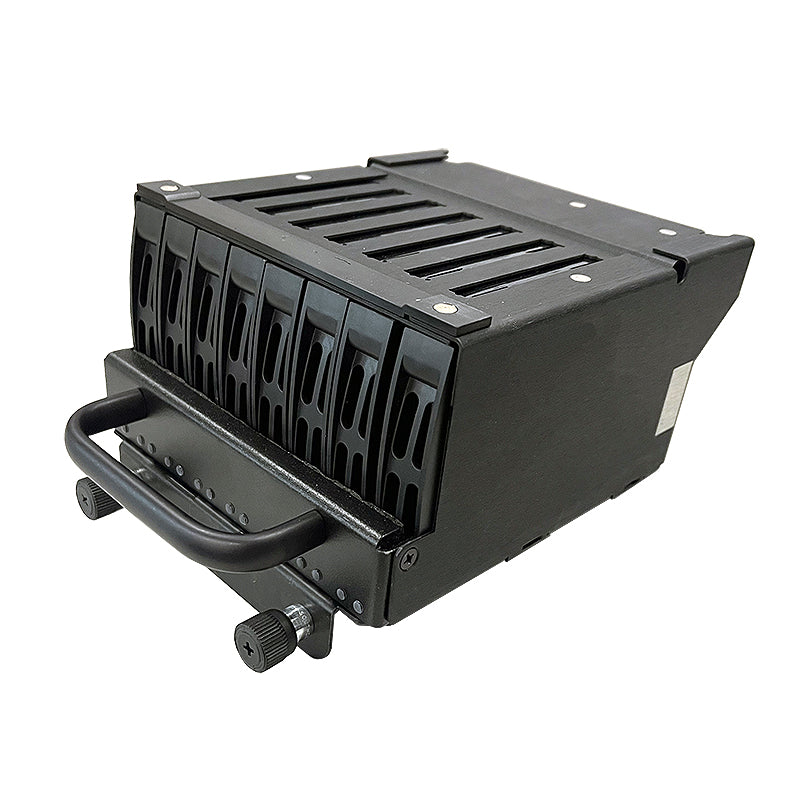

As the latest product in One Stop Systems’ line of PCIe storage expansion, Centauri offers high-capacity storage in a compact chassis. Built as a modular storage expansion to the OSS 3U SDS, Centauri can store up to 256 TB in its 8-drive canister. These canisters allow for tool-less bulk or individual drive removal and can be hot-swapped for ease of use in fast-paced environments. The system is compatible with 2.5" NVMe drives, and its PCIe Gen4 hardware facilitates high-speed storage throughput.
Centauri is designed to meet MIL-STD-810G ruggedization requirements. With its 3U form factor, half rack width, and short 20” depth, Centauri is the ideal companion to any system capturing data in edge applications. Additional features include dynamic fan speed control, lightweight aluminum enclosure, and IPMI 2.0 based system monitoring on dedicated ethernet.
An OSS sales engineer can assist in configuring Centauri to meet the specific needs of the most demanding applications. Application engineering and a unique suite of software tools are also available upon request.
-
Features:
- Bulk removable 8-bay storage canister
- Up to 256 TB of storage capacity per canister
- Unique half-rack, short-depth form factor
- PCIe 4.0 x16 SFF-8644 host uplink
- *Please log in to access the Manual.
Specifications +
| Enclosure |
Dimensions: 3U, 8.5”W x 20”D x 5.25” H Weight: 13 lbs with drives Aesthetics: Aluminum Chassis, black liquid paint exterior Capacity: 256TB per 3U system using 32TB NVMe drive |
|
| Storage Options | Drives: Up to eight (8) U.2/U.3 PCIe 3.0 or 4.0 x4 NVMe solid-state drives (SSD) | |
| Operating Systems | Supports servers and initiators running Microsoft Windows, Windows Server, Linux, UNIX, Solaris and Hypervisors | |
| Expansion | Multiple Centauri can be connected through available PCle x16 slots in a host server | |
| System Management | IPMI 2.0 compliant BMC monitors and controls fans, power supplies, temperature sensors & I2C devices | |
| Management GUI | Web server accessible over RJ-45 Ethernet port on rear of chassis | |
| LED Indicators | LEDs on the front panel indicating drive activity, power status and system ID | |
| RAID | Software RAID level support provided by the server, ION Accelerator or Zion Software | |
| Service Management | 1 Ethernet connector for connection to system monitoring tool Supports CLI, web GUI and SNMP management options | |
| Vibration |
|
|
| Power Supply | Dual 1600-Watt Common Redundant Power Supply (CRPS) Input Voltage Options:
|
|
| Operating Environment |
|
|
| Storage Environment |
|
|
