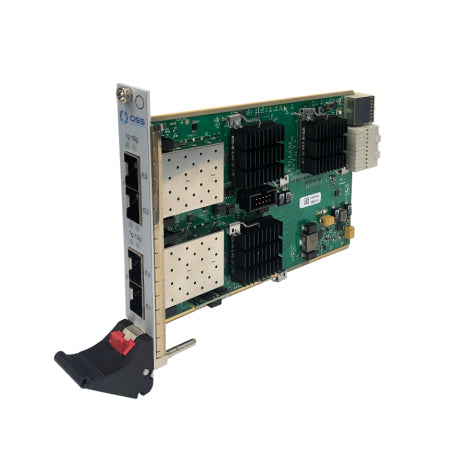

Quad Port 10Gb Ethernet Adapter
-
3U Compact PCI Express x4 Gen 3 quad port 10Gb Ethernet board, installs in a 3U CPCIe or PXIe peripheral slot of a downstream CPCIe/PXIe system.
-
Features:
- 3U EXP .0 Type 2 Form Factor
- Utilizes Dual Intel 82599ES 10 Gigabit Ethernet Controllers:
- Jumbo Frame support
- I/O virtualization
- 160KB Tx and 512KB Rx FIFOs per port
- iSCSI boot
- Quad SFP+ connectors
- RoHS Compliant
- *Please log in to access the Manual.
Specifications +
| Form Factor: |
CPCIe Type 2 |
| Dimensions: |
3.937" x 6.299” (100mm x 160 mm) (H x L) |
|
External Interface: |
Quad SFP+ connectors support 1Gb/s or 10Gb/s operation PCIe x8 Gen 3 backplane connection |
| Front Panel Indicators: |
Green LEDs per port for link status and speed indication |
| Power Consumption: |
12V @1.375A 3.3V @ .1A 16.8W maximum |
| Temperature Range: |
0° to 50° C (32° to 122°F) |
| Relative Humidity: | 10 to 90% non-condensing |
| Agency/Compliances: |
CE EN 55035:2017 EN 55024:2010 IEC 62368-1 FCC 47 CFR Part 15, Subpart B ICES-003 Issue 6: 2016 EN 55032: 2015 + AC: 2016-07 CISPR 32: 2015/COR1:2016 AS/NZS CISPR 32:2015 EN 61000-3-2: 2014 EN 61000-3-3: 2013 |
