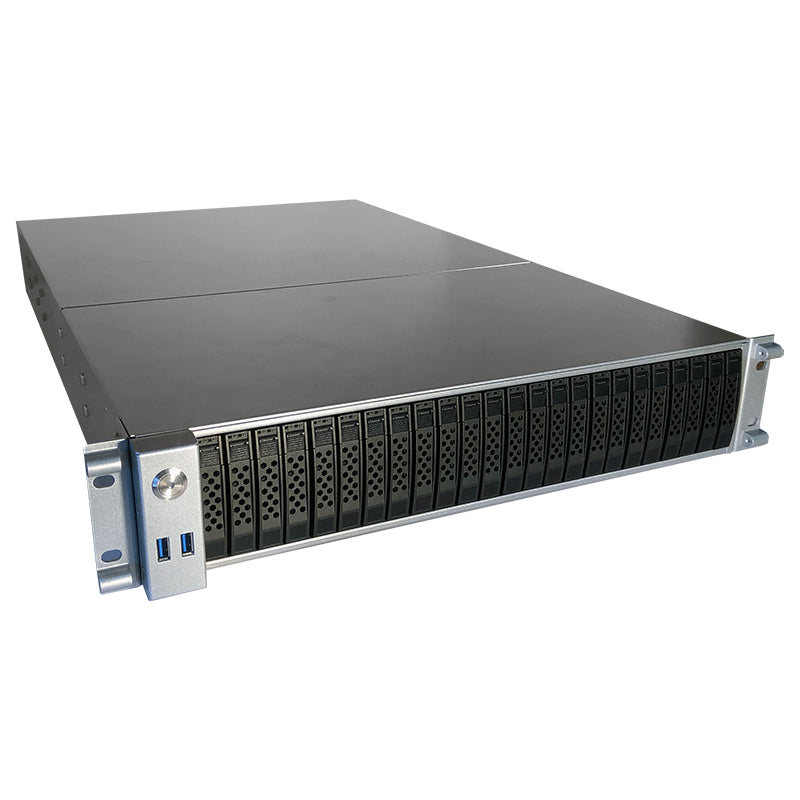

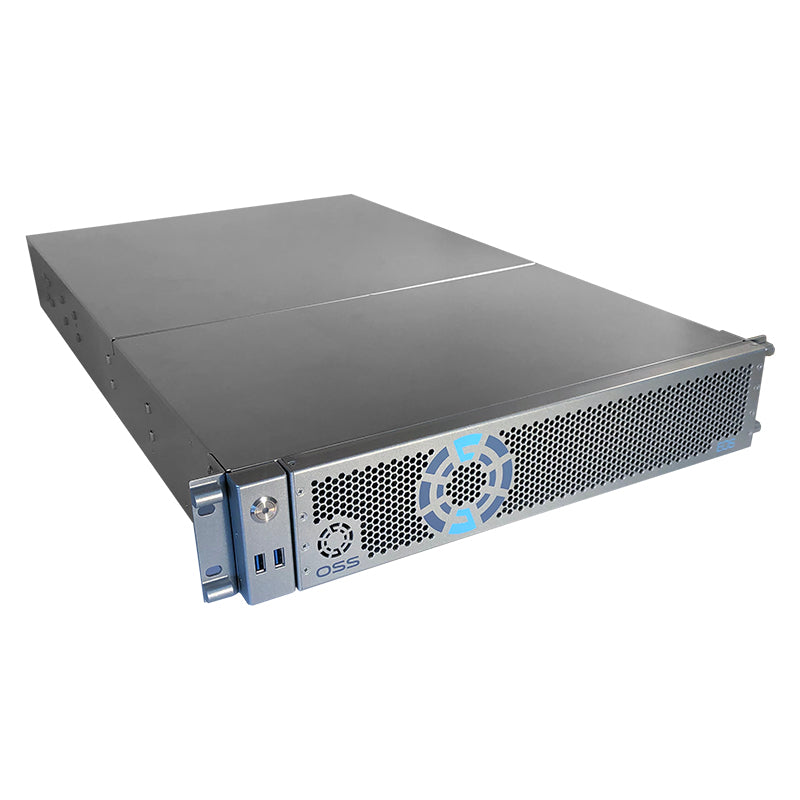

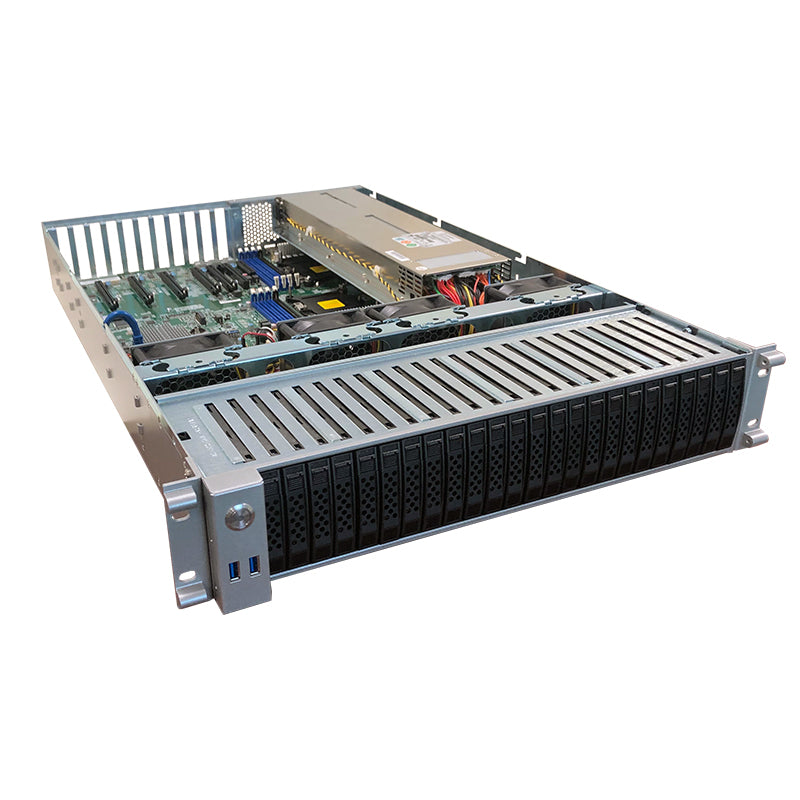

PCIe 4.0 2U EOS Server (EOS-2U-4i)



  • The EOS-2U-4i contains dual Intel Xeon Ice Lake Processor and provides the widest BIOS compatibility with dense storage and accelerator expansion systems. This allows the highly integrated server to stand alone or form the core CPU and memory resources for a scale-out, rack level, expandable solution. The EOS-2U-4i features six PCIe 4.0 x16 half-height slots and 1 PCIe 4.0 x8 half height slot. The EOS-2U-4i provides options for 7x add-in cards or 24x U.2 or U.3 drives. The server supports up to 4TB of memory and a resource expanded BIOS for scale-out device enumeration and large memory mapped I/O used for GP-GPUs and accelerators.

  • Features:

    • Dual Socket Intel 3rd gen Xeon Ice Lake Processor
    • Options for 7x add-in cards or 24x U.2/U.3 drives
    • Up to seven x16 PCIe 4.0 HH slots
    • Supports OSS 256Gb/s PCIe 4.0 expansion
    • Dual 1+1 redundant universal AC input power supplies
    • Resource expanded BIOS for large expansion capability
    • Guaranteed to operate with all OSS expansion products
