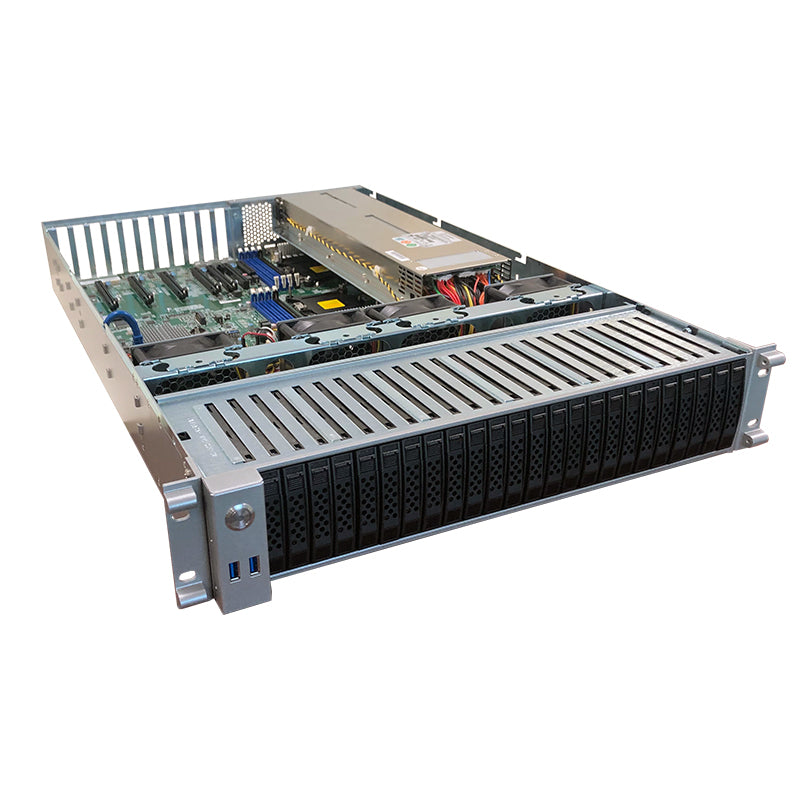

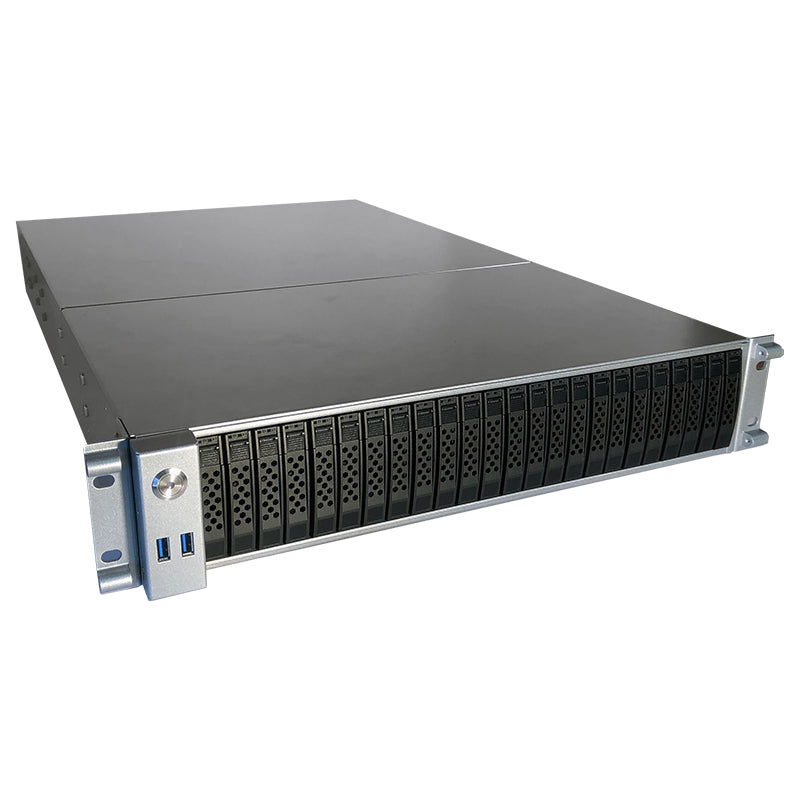

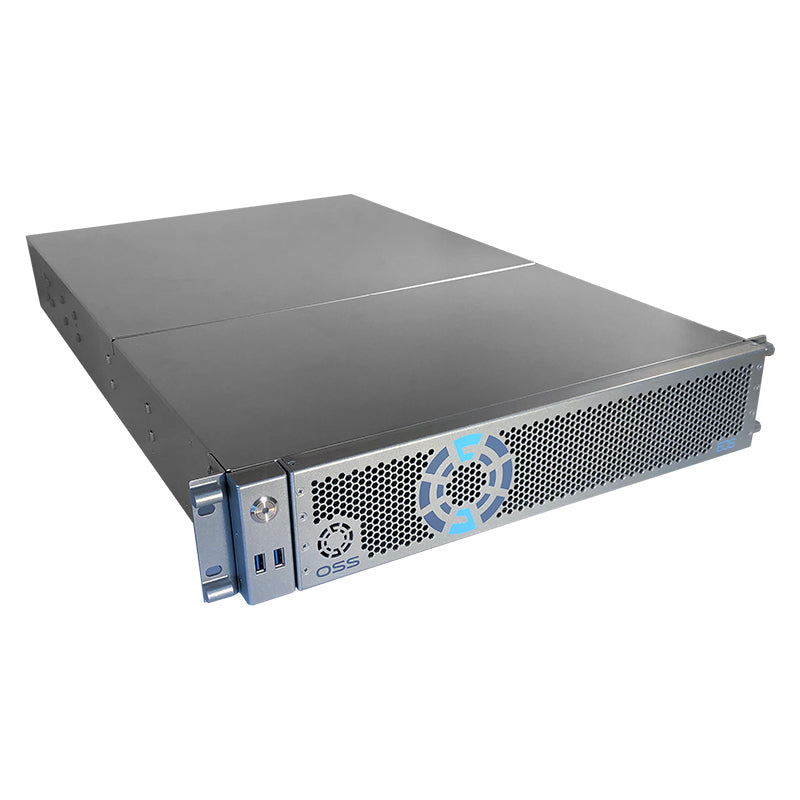

PCIe 3.0 2U EOS Server (EOS-2U-2i)
PCIe 3.0 2U EOS Server (EOS-2U-2i)
PCIe 3.0 2U EOS Server (EOS-2U-2i)
PCIe 3.0 2U EOS Server (EOS-2U-2i)

PCIe 3.0 2U EOS Server (EOS-2U-2i)

OSS-EOS-2U-2I
  • The EOS-2U-2i server revolutionizes the capabilities of homogenous systems containing closely coupled processors, NVMe solid-state storage, high-speed networking and accelerator co-processing elements such as GP-GPUs and FPGAs. The EOS-2U-2i contains two Intel Scalable Processors and provides the widest BIOS compatibility with dense storage and accelerator expansion systems. This allows the highly integrated server to stand alone or form the core CPU and memory resources for a scale-out, rack level, expandable solution. The EOS-2U-2i server features two storage and I/O configurations providing up to six PCIe 3.0 x16 half-height slots or 24 U.2 NVMe drives. The server supports up to 4TB of memory and a resource expanded BIOS for scale-out device enumeration and large memory mapped I/O used for GP-GPUs and accelerators.

  • Features:

    • Dual Intel® Xeon™ Scalable Processors
    • Up to 6 x16 PCIe 3.0 x16 expansion slots
    • Up to 24x 2.5” NVMe or SAS storage devices
    • Dual 1+1 redundant universal input power supplies
    • Resource expanded BIOS for large expansion capability
    • Guaranteed to operate with all OSS expansion products
  • *Please log in to access these items.
