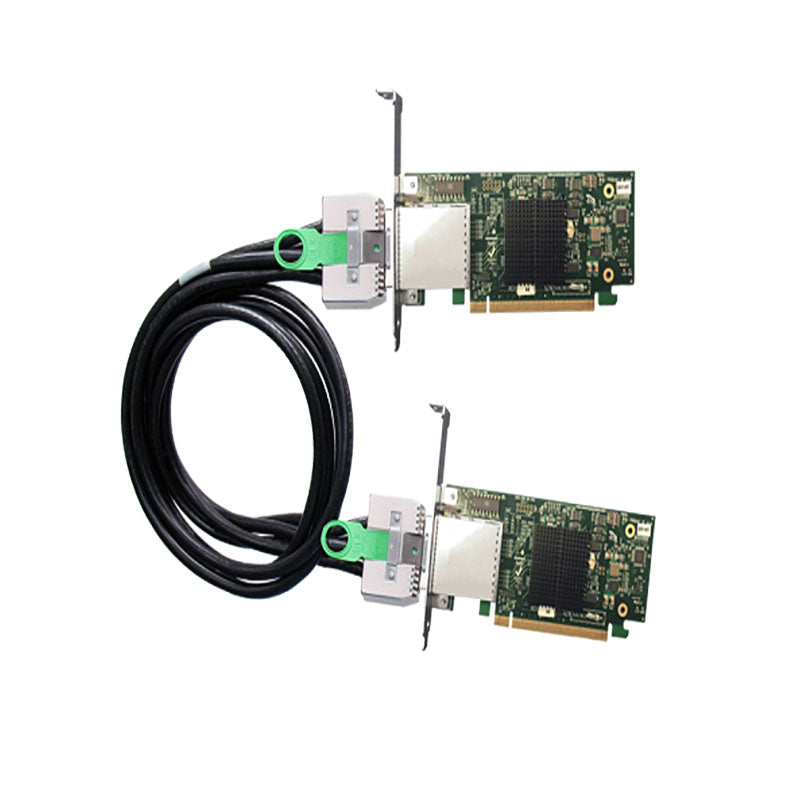

PCIe x16 Gen 3 Host to Target Kit (3811)

OSS-KIT-EXP-3811-1M

This product has an active EOL.

The PCIe x16 Gen 3 expansion kit connects a server to one I/O card. The PCIe x16 Gen 3 switch-based cable adapter plugs into a server and cables to a PCIe x16 Gen 3 switch-based target cable adapter. Backplane Sold Separately.
Features:
- Operates at 128Gb/s
- PCIe x16 switch-based host cable adapter can be inserted into a x16 slot of a host enclosure
- PCIe x16 cable with x16 connectors in 1M
- Works with any OSS expansion backplane
- Also offered in 2M and 3M lengths
- Datasheet
- Warranty

Form Factor	PCIe half card
Operating Temperature	0˚C to +70˚C environment
Storage Temperature	-40˚C to 85˚C
Operating Humidity	10% to 90% relative humidity non-condensing
Storage Humidity	5% to 95% relative humidity non-condensing
Power	1.5A @ 3.3V; 900mA @ 12V; 250mA @ 3.3V (aux)
Connectors	PCIe x16 cable connector PCIe x16 edge connector
Industry Specifications	PCIe External Cabling Specification, Rev. 1.0 PCI Express™ Card Electromechanical Specification, Rev. 3.0 PCI Express® Base Specification, Rev. 3.0 ATX Specification, Version 2.2
PCB	PCI Express add-in card standard PCIe x16 cable PCB thickness .063 +/-0.008 inch (1.6 +/- 0.2mm) Mounting holes for face plate
Switch	PLX 8732
Bracket	Standard and low profile brackets available Two LEDs on bracket
Agency Compliance	FCC Class A CE RoHS
