PCIe x16 Gen3 Host to Target Kit (3811)
This product has active EOL.
-
This product has an active EOL.

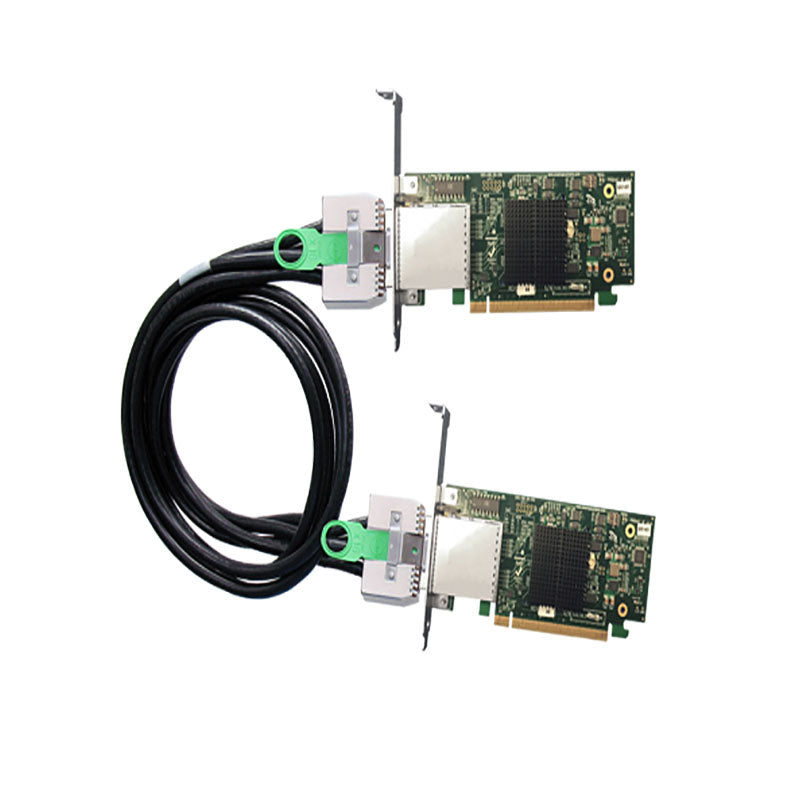

The PCIe x16 Gen 3 expansion kit connects a server to one I/O card. The PCIe x16 Gen 3 switch-based cable adapter plugs into a server and cables to a PCIe x16 Gen 3 switch-based target cable adapter. Backplane Sold Separately.
-
Features:
- Operates at 128Gb/s
- PCIe x16 switch-based host cable adapter can be inserted into a x16 slot of a host enclosure
- PCIe x16 cable with x16 connectors in 1M
- Works with any OSS expansion backplane
- Also offered in 2M and 3M lengths
Specifications +
| Form Factor | PCIe half card |
| Operating Temperature | 0˚C to +70˚C environment |
| Storage Temperature | -40˚C to 85˚C |
| Operating Humidity | 10% to 90% relative humidity non-condensing |
| Storage Humidity | 5% to 95% relative humidity non-condensing |
| Power | 1.5A @ 3.3V; 900mA @ 12V; 250mA @ 3.3V (aux) |
| Connectors |
|
| Industry Specifications |
|
| PCB |
|
| Switch | PLX 8732 |
| Bracket |
|
| Agency Compliance |
|
VIEW SPECIFICATIONS
PCIe x16 Gen3 Host to Target Kit (3811)
OSS-KIT-EXP-3811-1M
-
This product has an active EOL.
The PCIe x16 Gen 3 expansion kit connects a server to one I/O card. The PCIe x16 Gen 3 switch-based cable adapter plugs into a server and cables to a PCIe x16 Gen 3 switch-based target cable adapter. Backplane Sold Separately.
-
Features:
- Operates at 128Gb/s
- PCIe x16 switch-based host cable adapter can be inserted into a x16 slot of a host enclosure
- PCIe x16 cable with x16 connectors in 1M
- Works with any OSS expansion backplane
- Also offered in 2M and 3M lengths
