EB16-Basic
-
This product has an active EOL notice here.

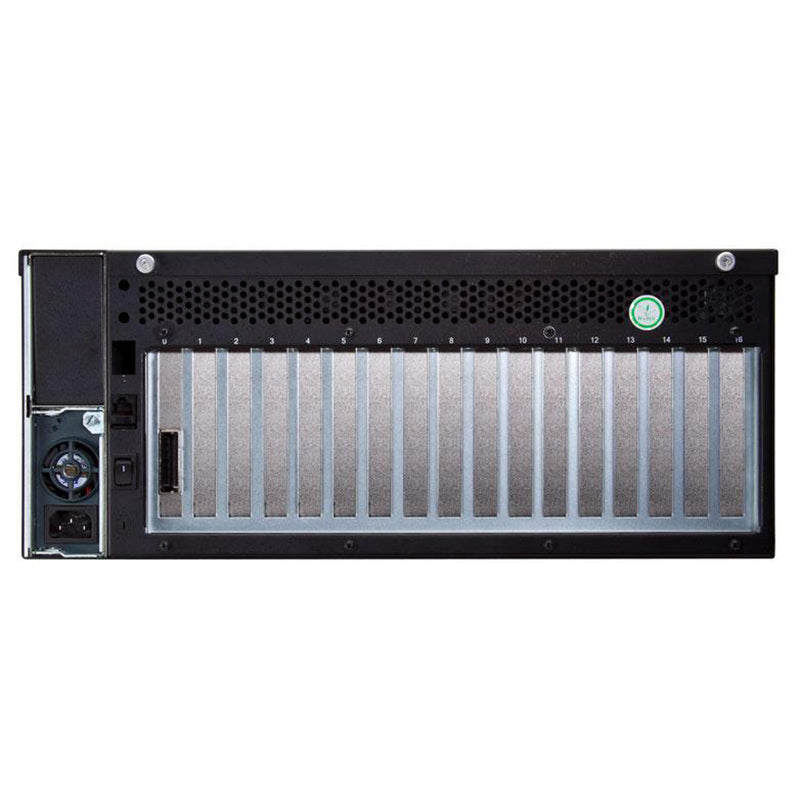

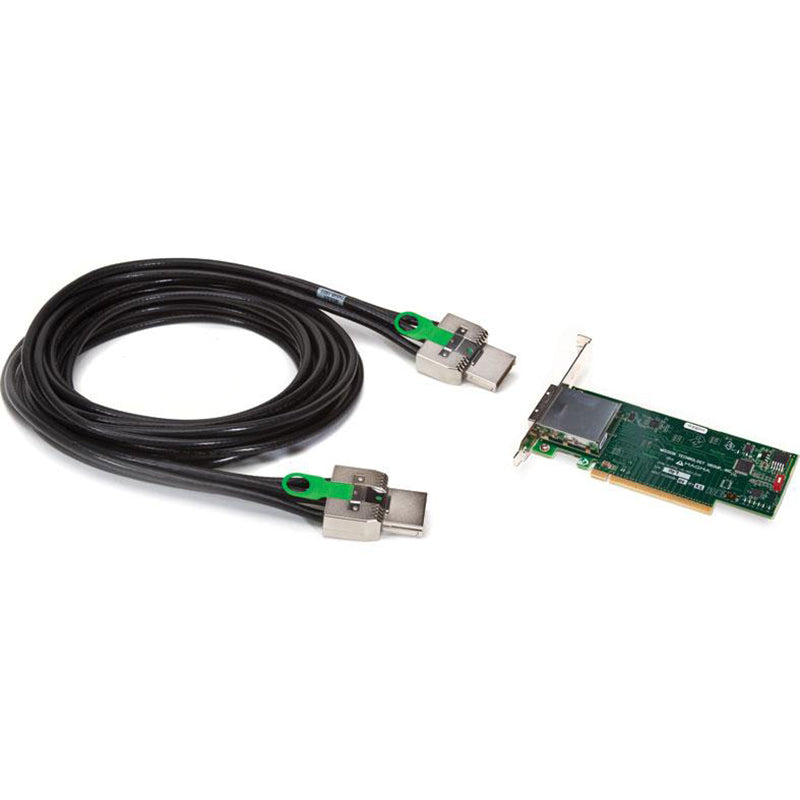

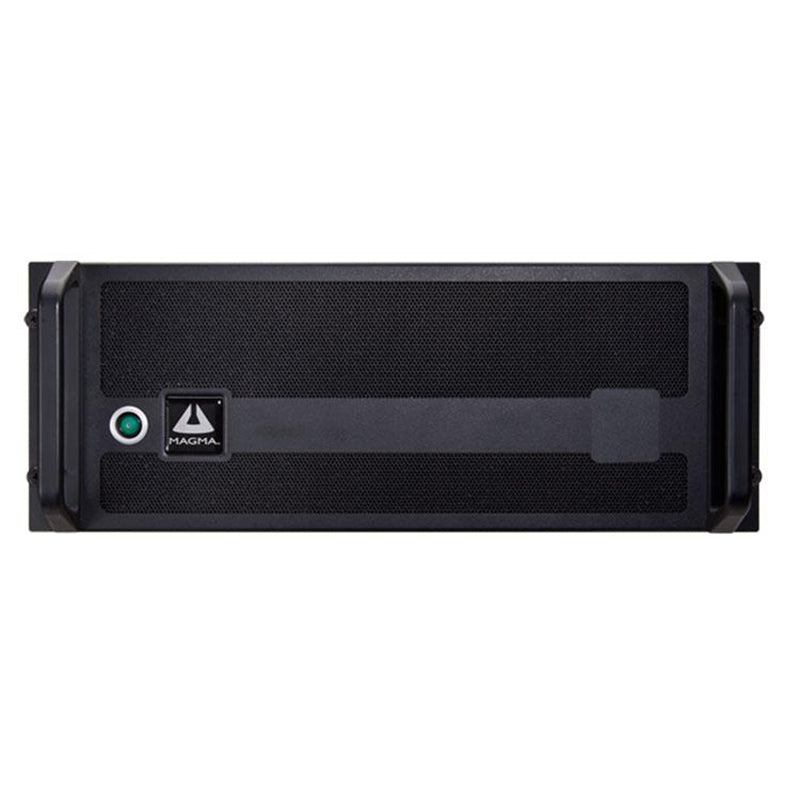

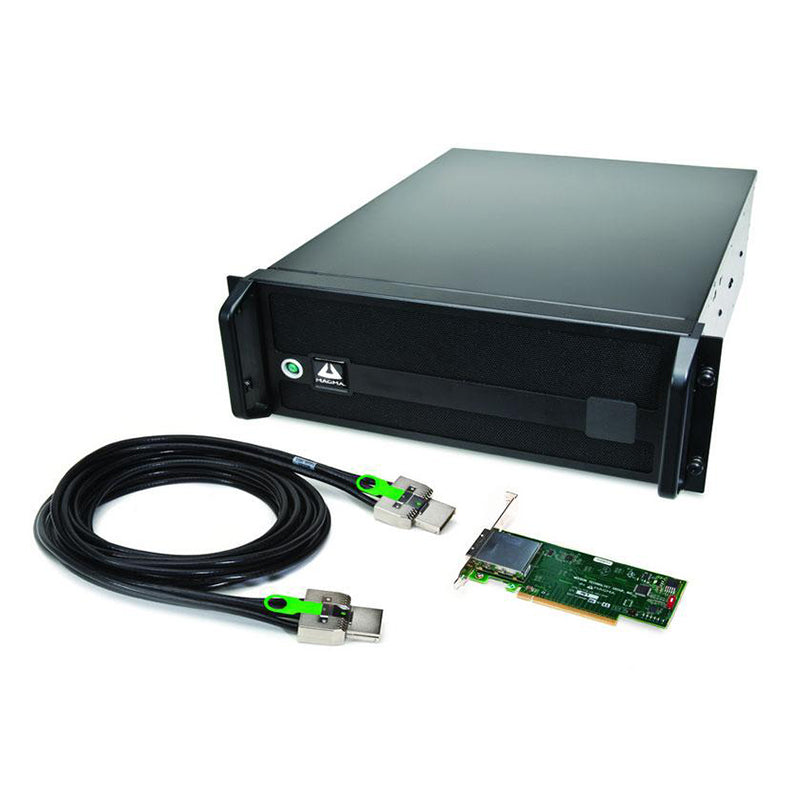

Magma's ExpressBox 16 (EB16-Basic) is the simplest solution to seamlessly increase the number of PCI Express® slots available to your server or workstation. ExpressBox 16 expands one host PCIe® slot to sixteen slots by extending PCI Express signals over a high-bandwidth x8 or x16 connection to an external Magma enclosure. ExpressBox 16 consists of a pair of interface cards (x8 or x16), an iPass cable and a 4U rack-mount expansion chassis. The Magma expansion chassis is automatically configured by the System BIOS, with the expansion slots appearing transparently on the host computer.
-
Features:
- Easy “Plug and Play” installation
- Supports peer-to-peer transfers between cards in the expansion chassis to provide full bandwidth potential among I/O cards
- LEDs on backplane indicate: active link, speed (Gen 1 or Gen 2), partial or complete lane training
- Industrial 4U rack-mount enclosure
- Multiple power supply options with auxiliary power connectors to support cards requiring more than 75 Watts
- *Please log in to access the Manual.
