PCIe x16 Gen 6 Switch Cable Adapter

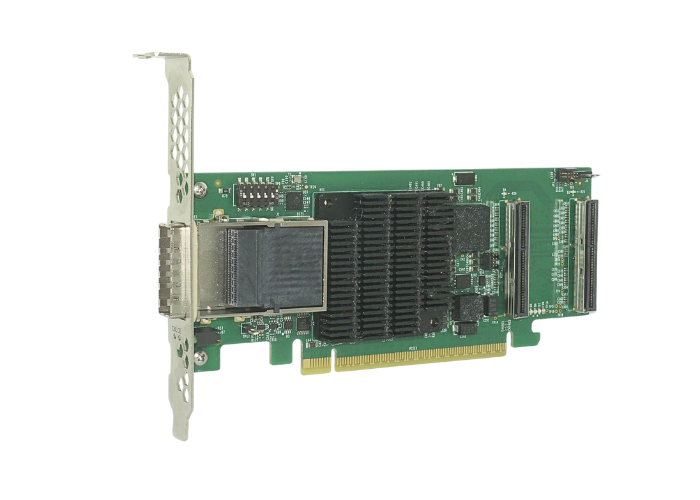

The PCIe x16 Gen 6 host interface board (OSS-638) with PCIe Copprlink cable connectors provides a high-speed, flexible, multi-funciton PCIe cable link using PCI-SIG compliant external cables and internal MCIO cable interfaces. The HIB 6310 supports a so,ware transparent path from a host’s root complex to multiple endpoints. The multi-port approach allows for a single x16 server slot to scale out to OSS PCIe 5.0 and 6.0 expansion systems while providing internal RDMA connectivity to NVMe drives, GPUs, FPGAs and industry leading accelerators.
- Operates at PCIe Gen 6 speeds up to 256GB/sec per x16 link
- Delivers 1.0TB/sec aggregate bandwidth to drive PCIe accelerators
- No software drivers required
- Utilizes PCI-SIG compliant CopprLink cables with sideband signals to support power control and remote reset
- Supports copper cables up to 3m and fib er cables up to 100m
- Low profile, half-length form factor
- Operates in Host or Target Mode
- Supports two internal PCIe 6.0 x16 MCIO interconnects
- Guaranteed to operate with all OSS expansion products
- Download Datasheet
