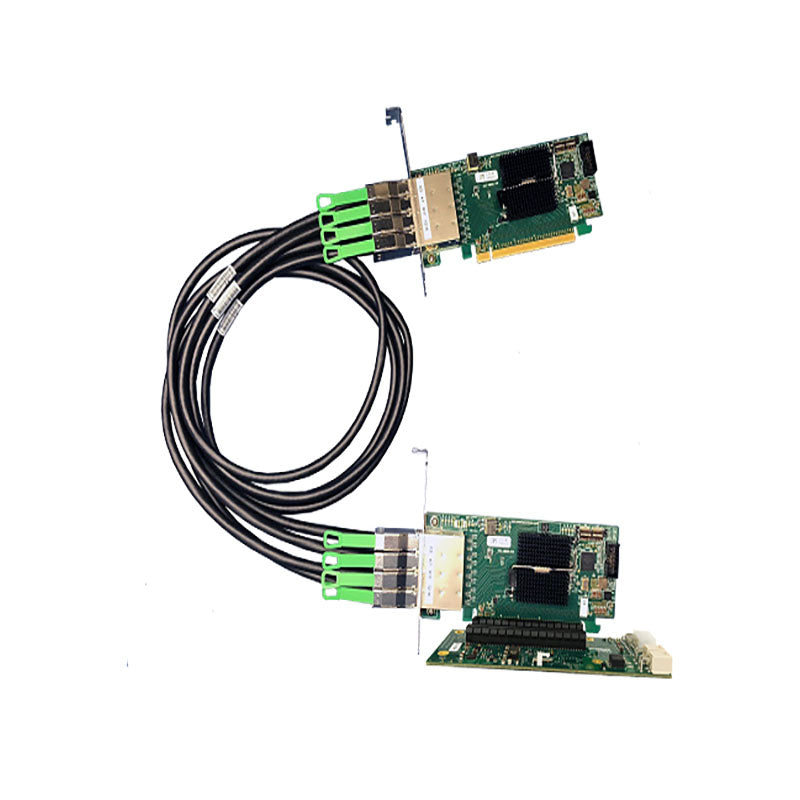

PCIe x16 Gen3 Host to Target Kit (6810)
-
The PCIe x16 Gen 3 expansion kit connects a server to one I/O card. The PCIe x16 Gen 3 switch-based cable adapter plugs into a server and cables to a PCIe x16 Gen 3 switch-based target cable adapter. The PCIe x16 3.0 slot backplane supports up to a PCIe x16 Gen3 add-in board.
-
Features:
- Operates at 128Gb/s
- PCIe x16 switch-based host cable adapter can be inserted into a x16 slot of a host enclosure
- PCIe x16 cable with (4) x4 mini-SAS cables and a HIB68 x16 host adapter card
- One OSS PCIe x16 3.0 target slot for OSS target cable adapter
- One PCIe x16 3.0 expansion slots (x16 mechanical)
Specifications +
PCIe x16 Gen 3 Cable Adapter
PCIe x16 3.0 slot backplace
| Form Factor | PCIe half height half length card |
| Operating Temperature | 0˚C to +70˚C environment |
| Storage Temperature | -40˚C to 85˚C |
| Operating Humidity | 10% to 90% relative humidity non-condensing |
| Storage Humidity | 5% to 95% relative humidity non-condensing |
| Power | 1.5A @ 3.3V; 900mA @ 12V; 250mA @ 3.3V (aux) |
| Connectors |
|
| Industry Specifications |
|
| PCB |
|
| Switch | PLX PEX 8733 |
| Bracket |
|
| Agency Compliance |
|
PCIe x16 3.0 slot backplace
| Dimension (H x L) | 2.385" W x 6.3 D |
| Power |
12 VDC Max: 84 watts, plus 84 watts with power extension |
| Form Factor |
1 OSS target slot 1 PCIe x16 Gen3 expansion slot |
VIEW SPECIFICATIONS
PCIe x16 Gen3 Host to Target Kit (6810)
$4,579.00
OSS-KIT-EXP-6810
-
The PCIe x16 Gen 3 expansion kit connects a server to one I/O card. The PCIe x16 Gen 3 switch-based cable adapter plugs into a server and cables to a PCIe x16 Gen 3 switch-based target cable adapter. The PCIe x16 3.0 slot backplane supports up to a PCIe x16 Gen3 add-in board.
-
Features:
- Operates at 128Gb/s
- PCIe x16 switch-based host cable adapter can be inserted into a x16 slot of a host enclosure
- PCIe x16 cable with (4) x4 mini-SAS cables and a HIB68 x16 host adapter card
- One OSS PCIe x16 3.0 target slot for OSS target cable adapter
- One PCIe x16 3.0 expansion slots (x16 mechanical)
