PCIe/CXL x16 Gen 6 Retimer Cable Adapter

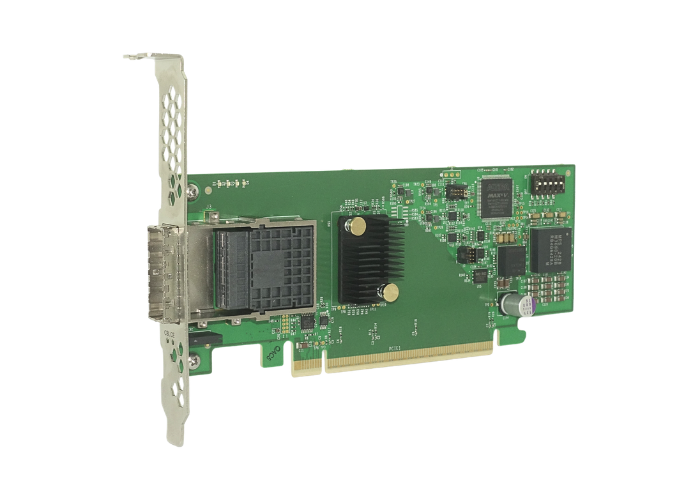

The PCIe/CXL x16 Gen 6 host interface board (OSS-639) with PCIe Copprlink cable connectors provides the lowest latency PCIe cable link in an external PCIe cable link using PCI-SIG compliant external cables. The cable adapter operates in host or target mode controlled with DIP switch settings. The HIB 6110 supports a so/ware transparent low-latency path from a host server to multiple endpoints in an OSS expansion system.
- Operates at PCIe Gen 6 speeds up to 64 GT/sec per lane
- Supports CXL 3.2 low latency memory appliances
- Delivers 256 GB/sec (full duplex) bandwidth with x16 lanes
- No software drivers required
- Utilizes PCI-SIG compliant CopprLink cables with sideband signals to support power control and remote reset
- Supports copper cables up to 3m and fiber cables up to 100m
- Low profile, half-length form factor
- Operates in Host or Target Mode
- Supports retimer-to-retimer links
- Guaranteed to operate with all OSS expansion products
- Download Datasheet
