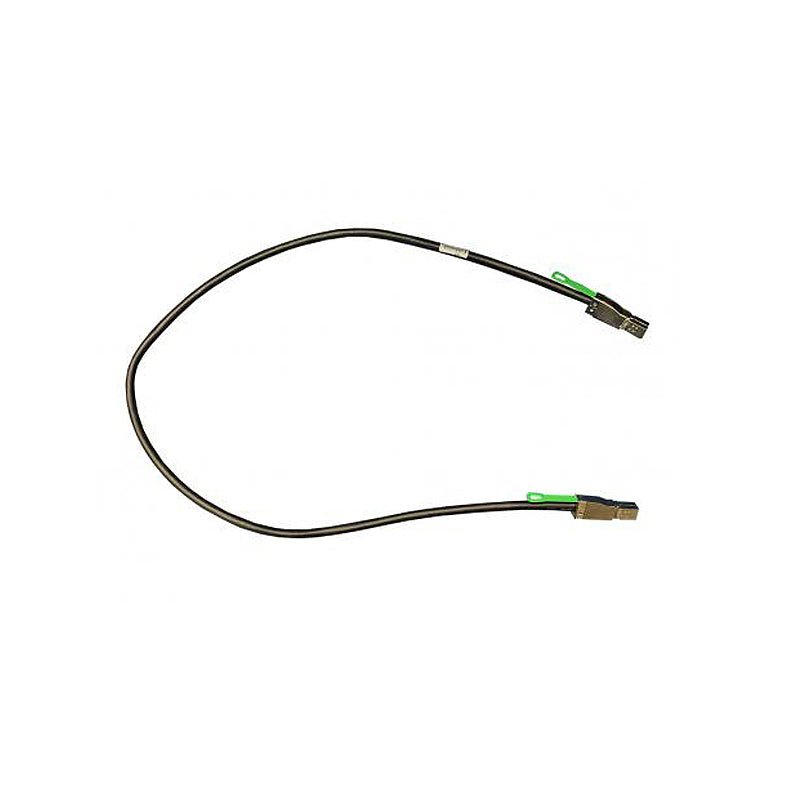

Mini-SAS x4 Cable
Gen3 Part Number: OSS-mSAS-CBL-x4-C-xM / Gen4 Part Number: OSS-mSAS4-CBL-x4-C-xM
$132.00
-
Gen3 and Gen4 PCI Express (PCIe) share the same cable with mSAS for high speed signaling up to 3m in length. This passive copper cable mates to the SFF-8644 connectors on the HIB6xx family of OSS host interface boards and includes the CMI (cable management interface). For x4, select one cable. For x8, select two cables. For x16, select four cables. Gen4 cables are REQUIRED to support Gen4 bandwidth and OSS Gen4 products.
-
Features:
- Available in up to 3m lengths
- Mates to HIB68 and HIB616 host interface boards
- Single or multiple cables can form larger PCIe links
- x4 (1 cable)
- x8 (2 cables)
- x16 (4 cables)
- Allows transfers to and from the host up to 6GB/s
Specifications +
| Cable Lengths: |
1m, 2m, 3m |
| Cable Options: |
x4 (1 cable) x8 (2 cables) x16 (4 cables) |
| Wire Size AWG: | 28-30 |
| Bend Radius: | 4.0" cable bend radius |
| Agency Compliance: | CE, WEEE, RoHS2 |
