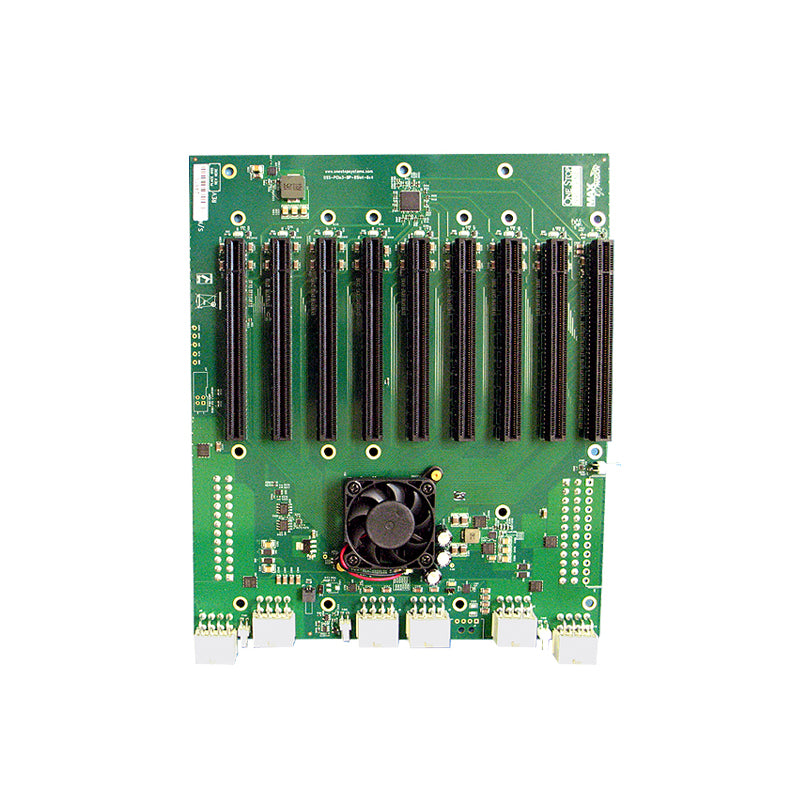

Expansion Backplane, 8 PCIe x4 slots (416)

$1,684.00

OSS-BP-416

Backplane with eight PCIe x4 Gen3 slots. The OSS target backplane supports a PCIe Gen3 target cable adapter installed in the OSS target slot and up to eight PCIe x16 expansion cards installed in the expansion slots (slots are x4 electrically). Slots are backward compatible and support Gen 1 target adapters and expansion cards. Only target adapters with the OSS target slot configuration are supported. Expansion cards designed to the PCIe PCI-SIG specification are supported. While the backplane is used in the CUBE products, it can also be used in test applications as a stand-alone backplane with 12VDC power applied.
Features:
- One OSS PCIe x16 3.0 target slot for OSS target cable adapter
- Eight PCIe x4 3.0 expansion slots (x16 mechanical)
- ATX power input
- Thunderbolt power connector
- Fan speed controller
