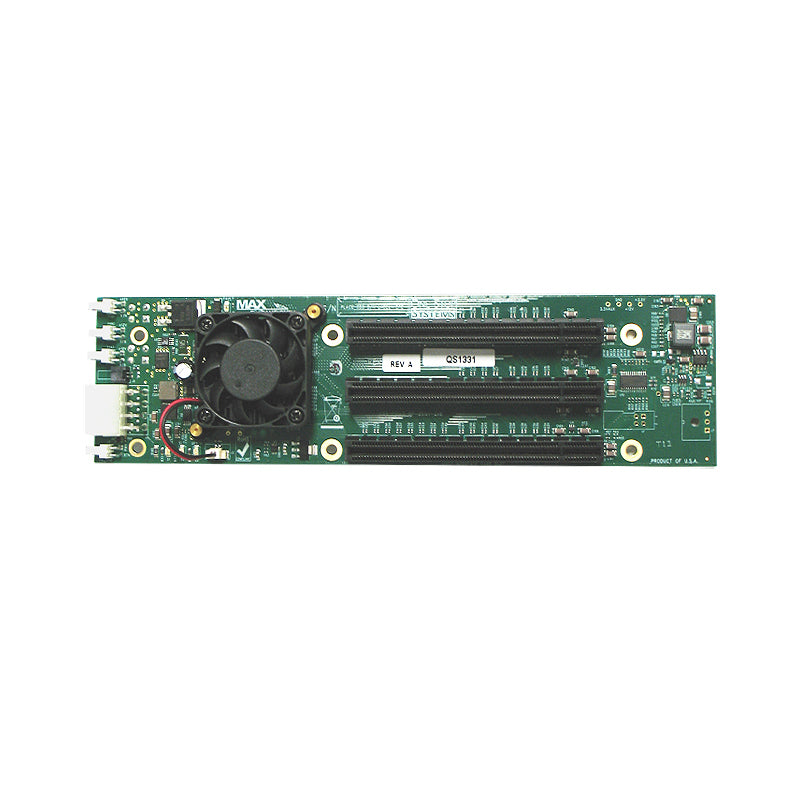

Expansion Backplane, 2 PCIe x8 3.0 slots (419)

$1,164.00

OSS-BP-419

Backplane with two PCIe x8 3.0 expansion slots with 12V power. The OSS target backplane supports a PCIe Gen3 target cable adapter installed in the OSS target slot and one or more PCIe x16 expansion cards installed in the expansion slots. Slots are backward compatible and support Gen 1 and Gen 2 target adapters and expansion cards. Only target adapters with the OSS target slot configuration are supported. Expansion cards designed to the PCIe PCI-SIG specification are supported. While the backplane is used in the CUBE products, it can also be used in test applications as a stand-alone backplane with 12VDC power applied.
Features:
- One OSS PCIe x16 3.0 target slot for OSS target cable adapter
- Two PCIe x8 3.0 expansion slots (x16 mechanical)
- 12 VDC Input
- Thunderbolt power connector
- Fan speed controller
