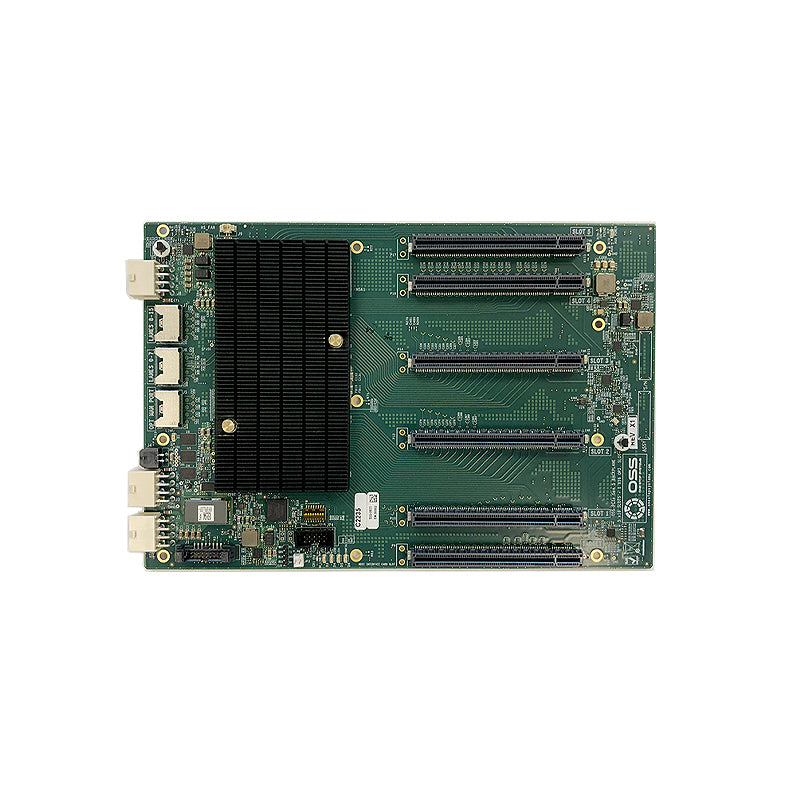

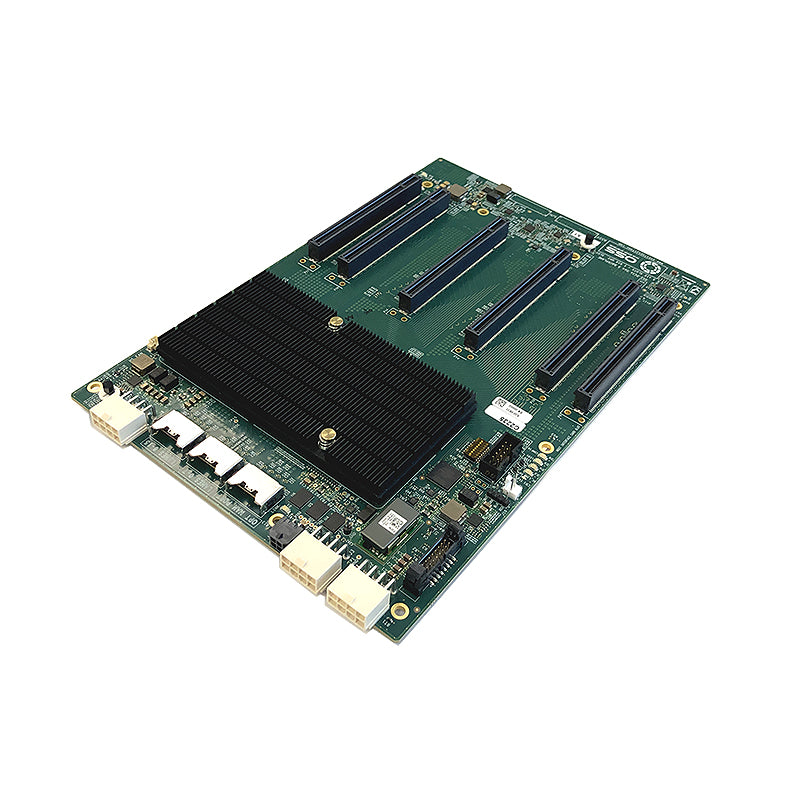

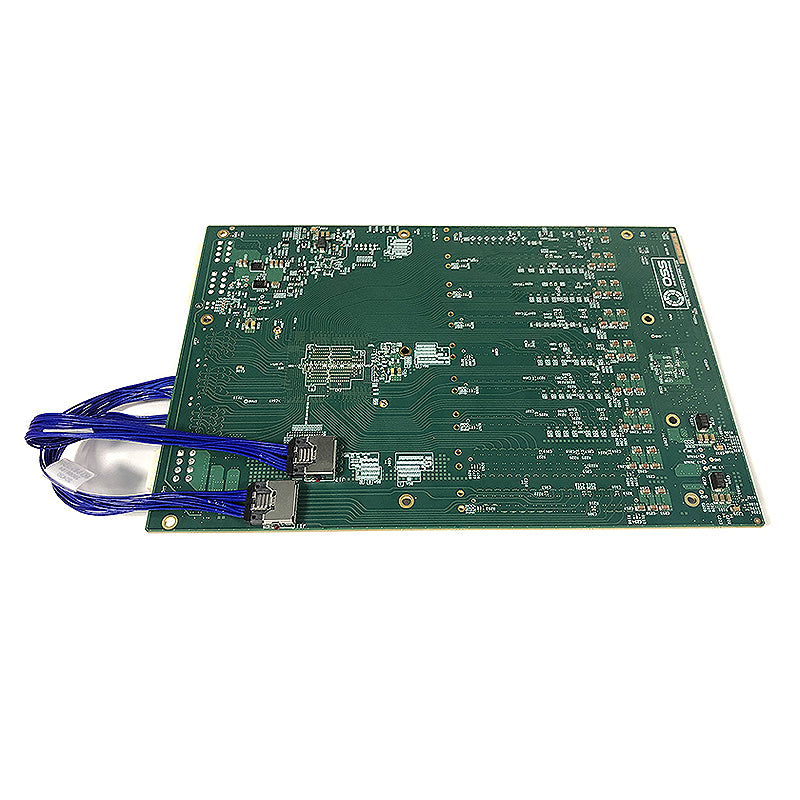

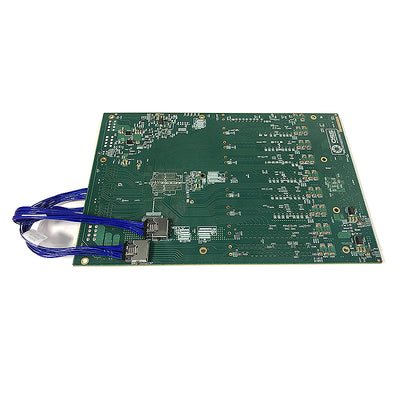

Expansion Backplane, 5 PCIe x16 5.0 slots (580)

The OSS-BP-580 expansion backplane provides five PCIe 5.0 x16 downstream expansion slots for the latest PCIe add-in cards.  Four downstream slots are dual width, allowing for dual width PCIe 5.0 x16 add-in cards such as GPUs to fit in one backplane.  The OSS-BP-580 width is optimized to support two backplanes side-by-side in a standard 19” rackmount chassis.  The expansion backplane connects back to the host node through the PCIe 5.0 x16 upstream slot which can be populated with an OSS-PCIe-HIB732-x16 PCIe 5.0 x16 host bus adapter.  The OSS-BP-580 can also be bifurcated to support dual upstream host bus adapters for up to four downstream target add-in cards for double the total host-to-expansion throughput.
