Refer to the datasheet for the detailed system block diagram illustrating the full hardware architecture and connectivity layout of the platform.
-
-

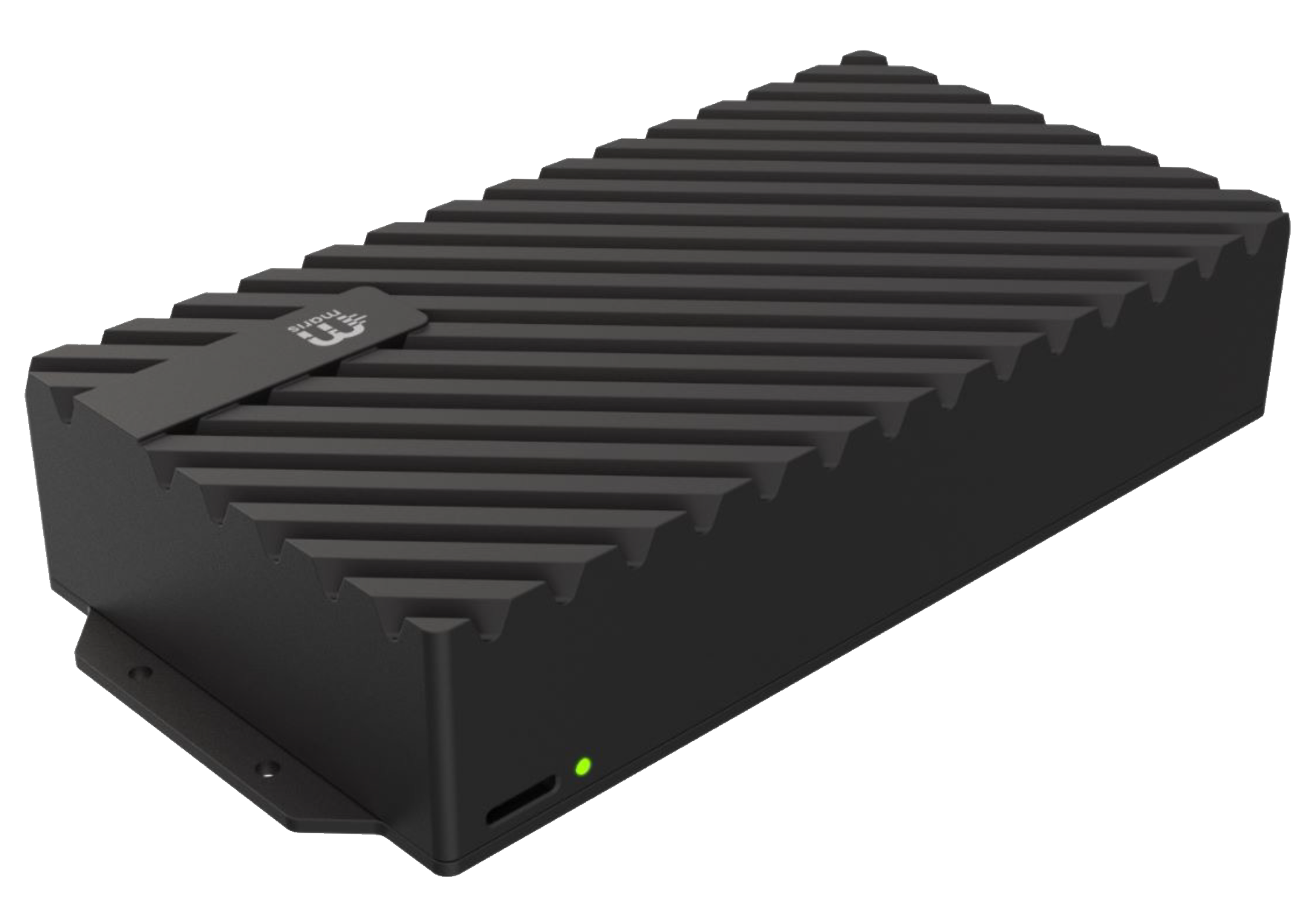

Dimensions: L 258.2 x W 110.5 x H 54.0 mm
-
Processor: Rockchip RK3588 octa-core 64-bit processor including:
- 6 TOPS NPU
- 64GB RAM
- 8GB LPDDR4
- 8K video encoding and decoding
- Industrial-grade operation from -40°C to +85°C
- Dual Hailo-8 AI accelerators delivering 26 TOPS each
- 4 x IP camera inputs (up to 8K) with PoE
- 1 x Gigabit Ethernet (no PoE)
- 3 x USB 3.0 ports
- 1 x RS232
- 1 x HDMI output
- 1 x Micro-SD slot supporting maximum available capacity
- Optional 4G LTE cellular modem (Nano-SIM) add-on module
- 12V power input
-
