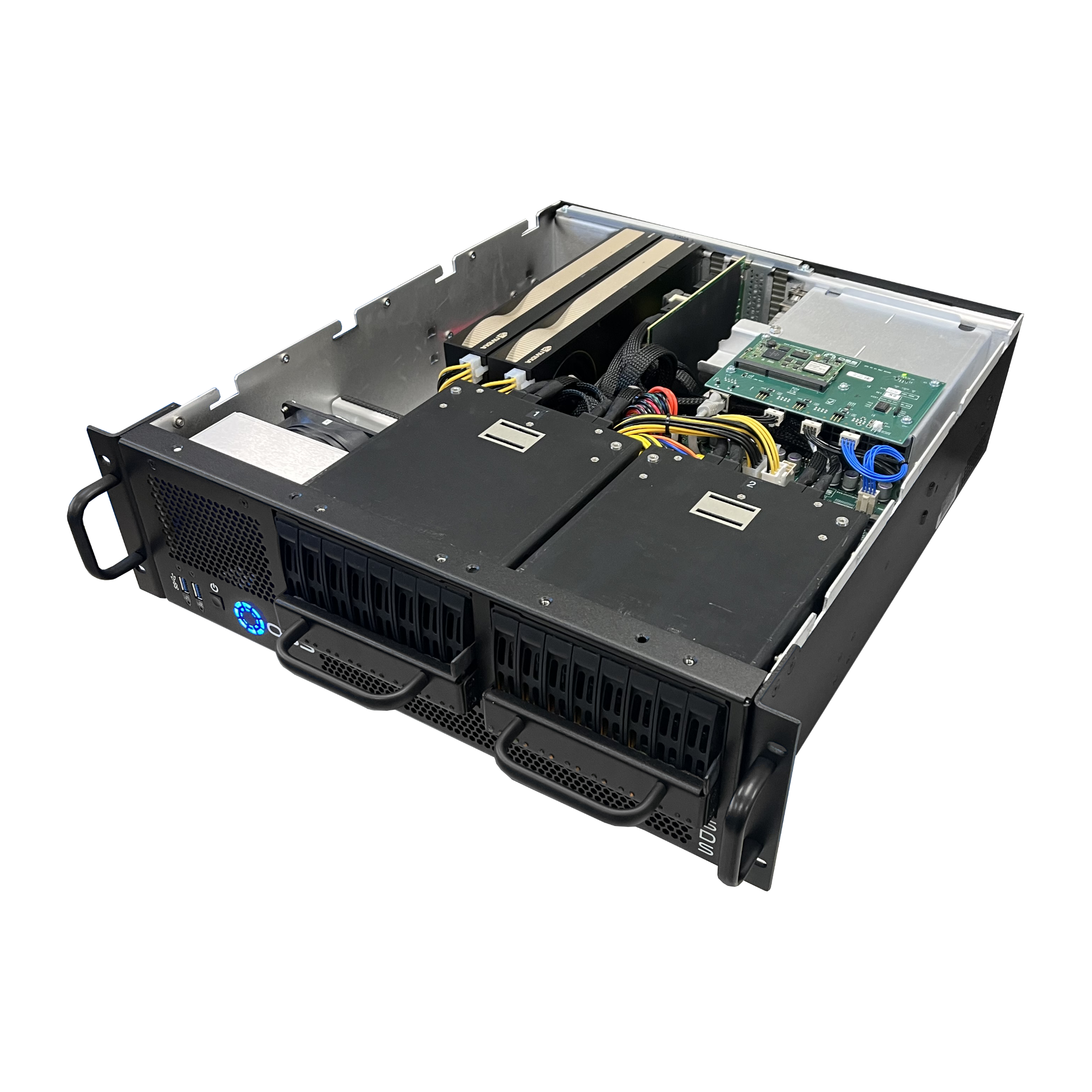

PCIe Gen 4 3U Short Depth AMD Server (SDS-3U-4a)

OSS-SDS-3U-4A

  • The Gen 4 PCIe SDS-3U-4a contains options for Dual or Single-Socket AMD EPYC™ 7003 Series Processors and provides a feature packed rugged server platform for GPU or FPGA accelerated computing, U.2/U.3 NVMe storage and the most native PCIe Gen 4 x16 slots available on the market. This functionality is delivered in a size efficient edge ready rugged chassis with 3U height and 20” depth. This allows the edge optimized server to stand alone as a hyperconverged PCIe Gen 4 server or form the core CPU and memory resources for a scale-out, rack level, expandable or composable solution in the shallowest available racks. The SDS-3U-4a features up to 7 PCIe Gen 4 x16 slots, and 16 SATA/SAS/NVMe drives. The server supports up to 2TB of memory per CPU socket and a resource expanded BIOS for scale-out device enumeration and large memory mapped I/O used for GPUs and accelerators.

  • Features:

    • AMD EPYC™ 7003 Series Processor(s)
    • 20” depth
    • 2x Internal PCIe 4.0 M.2 Boot drives
    • 8 or 16 U.2/U.3 SATA/SAS/NVMe drives
    • Up to 7 x16 PCIe 4.0 expansion slots
    • System Monitoring
    • AC or DC Power Supplies
    • Resource expanded BIOS for large expansion capability
    • Guaranteed to operate with all OSS expansion products
  • *Please log in to access the Manual.

VIEW SPECIFICATIONS

Power Cords

240V, 15amp

Fan Speed Controller

IPMI

Sysmon

Yes

HIB Cable Length

0.5-Meter, 1-Meter, 2-Meter, 3-Meter (Mini SAS-HD only)

HIB Cable Types

Mini-SAS HD Cables

Switches

PLX

Host Options

1x PCIe4 x16 Host-to-Target uplink (32 GB/s), 2x PCIe4 x16 Host-to-Target uplinks (64 GB/s), SmartNIC Host

PCIe Backplanes

OSS-538 backplanes, OSS-521 backplanes

Regulatory

TUV-GS (EN60950-1 /IEC60950-1,EK1-ITB2000), Agency Certifications (testing pending): FCC Class A, CE Safety & Emissions, UL, cUL, RoHS3

Configurations

GPU Compute Accelerator, Flash Storage Array, FPGA Sensor Array

Storage Humidity

0-95% (non-condensing)

Storage Temperature

-40 to 85°C

Operational Altitude

6000 ft. at operating temp, 15,000ft. at derated temp.

Operational Humidity

5-95% (non-condensing)

Operating Temperature

-10° to 50° C* ambient. (These temperatures may require GPU/CPU throttling.)

Power Consumption

Power Supplies

Single/Dual AC 2600W, Single/Dual AC 1600W

Fan Filters

Optional Quadrafoam 45 PPI Replaceable Fan Filters

Hold-Down Bar

Yes

Cooling

2x 180CFM 92mm fans

Construction

Steel

Size

10.7” x 7.0” x 18.5”

Slots

8 PCIe 4.0 x16 Double-Width Slots, 2 PCIe 4.0 x16 Single-Width Slots, 4 PCIe 4.0 x16 Double-Width Slots, 1 PCIe 4.0 x16 Single-Width Slots
