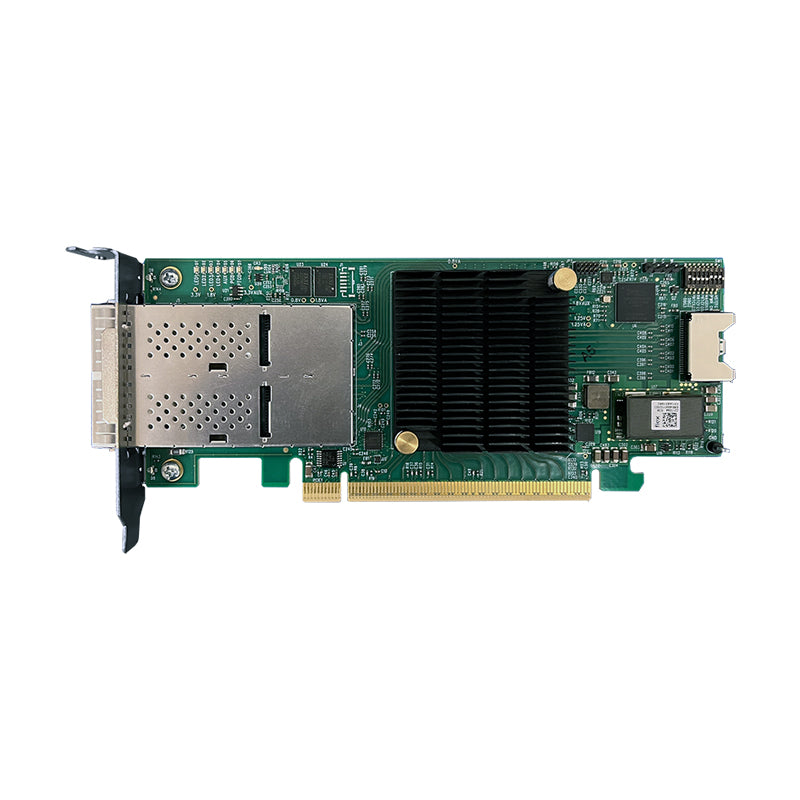

Form Factor |
PCIe 5.0 x16 low profile, half-length |
Dimensions |
6.6” x 2.65” (16.76 x 6.73 cm) at 0.063” (1.6mm) thickness
|
Bandwidth |
32GT/sec per lane, 128 GB/sec (full duplex) with x16 lanes |
Connectors |
PCIe x16 card edge connector
Dual QSFP-DD connectors with custom pin-out (OSS cables required)
1 additional internal x8 PCIe ARF connector |
Bracket |
Standard and low profile brackets available
|
PCIe Switch |
Broadcom PEX 89072
32 GT/sec 72 lane PCI Express Gen 5 Switch
DMA Controller
SSC Isolation |
Switch Latency |
150 nsec |
Cable Types |
Supports the following cable types:
- Custom QSFP-DD PCIe CMI copper cables; .5m, 1m, 2m, 3m
- Remote power and reset control
|
Cable Connection Modes |
One x16 host connection via edge card to: - One x16 cable connection
- Two x8 cable connections
|
Power |
20 W Max
1.5A @3.3V
1.2A @12V
250mA@3.3 aux |
Operating Temperature |
0 C to +40 C |
Storage Temperature |
-40 C to 85 C |
Operating Humidity |
10% to 90% relative humidity non-condensing |
Storage Humidity |
5% to 95% relative humidity non-condensing |
Agency Compliance |
Designed to meet the following agency standards:
- FCC—Part 15 Class A, 47CFR; Canada ICES-003, issue 4, Class A; Japan: VCCI, Class A; CE Emission 2004-108EC
- UL/IEC 62368-1; Canada: CSA C22.2 No. 62368-1; Argentina: IEC62368-1; IEC 62368-1 (CB Certificate and CB Test Report)
- CE Mark (EN55022 Class A, EN62368-1, EN55024, EN61000-3-2, EN610000-3-3)
- CISPR 22, CISPR 24, Class A; Australia/New Zealand AS/NZS CISPR 22, Class A
- RoHS 3 Compliance (Directive 2015/863/EC)
|
