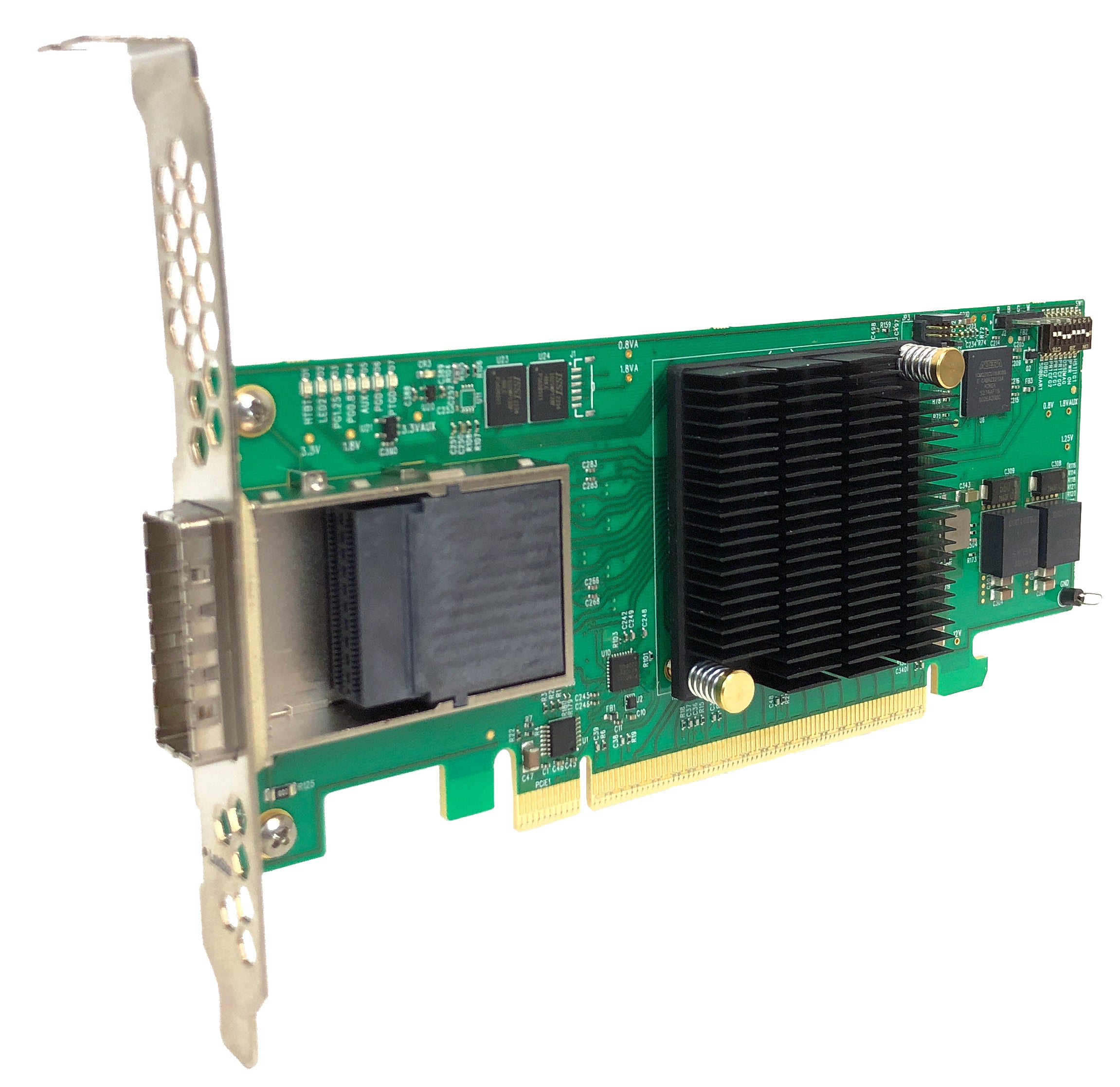

PCIe x16 Gen5 Cable Adapter (CDFP)

OSS-PCIe5-HIB732-CDFP32-X

PCIe x16 Gen 5 host interface board with a 32-lane switch and PCIe CDFP v0.7 cable connector. The 32-lane cable adapter operates in either host or target mode controlled with DIP switch settings (see user manual for dip switches setting). Installing OSS-PCIe5-HIB732-CDFP32-H in a PCIe slot in a PCIe Gen 5 motherboard and connecting it to an OSS-PCIe5-HIB732-CDFP32-H in target mode or connect to passive HIB, OSS-PCIe5-HIB732-CDFPASS-x16-T via a standard CDFP cable up to 1m allows for data transfer bandwidths up to 128GB/sec. All PCIe devices in the remote chassis appear to the host CPU as directly connected PCIe peripherals on the PCIe switch fabric.
Please call for pricing: +1 (877) 438-2724
Features:
- Operates at PCIe Gen 5 speeds up to 32 GT/sec per lane
- Delivers 128 GB/sec (full duplex) bandwidth with x16 lanes
- No drivers required
- Utilizes standard cables with sideband signals to support power control and remote reset (CMI functionality)
- Low proﬁle, half-length form factor
- Guaranteed to operate with all OSS expansion products
