PCIe 4.0 Dual M.2 Carrier
PCIe 4.0 Dual M.2 Carrier
PCIe 4.0 Dual M.2 Carrier
PCIe 4.0 Dual M.2 Carrier

PCIe 4.0 Dual M.2 Carrier

OSS-PCIE4-ADPT-X16-M.2-2

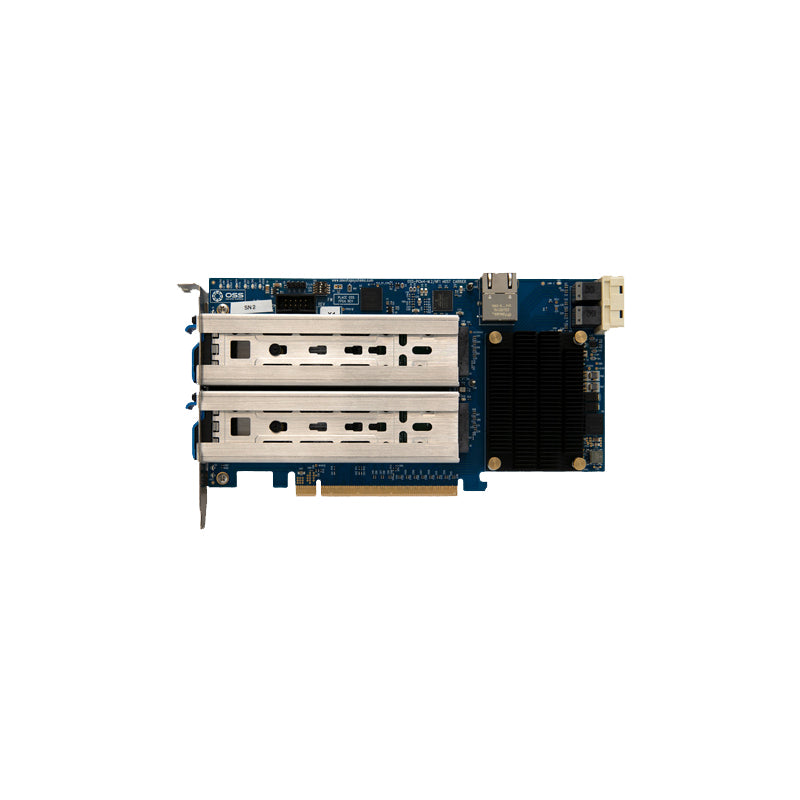

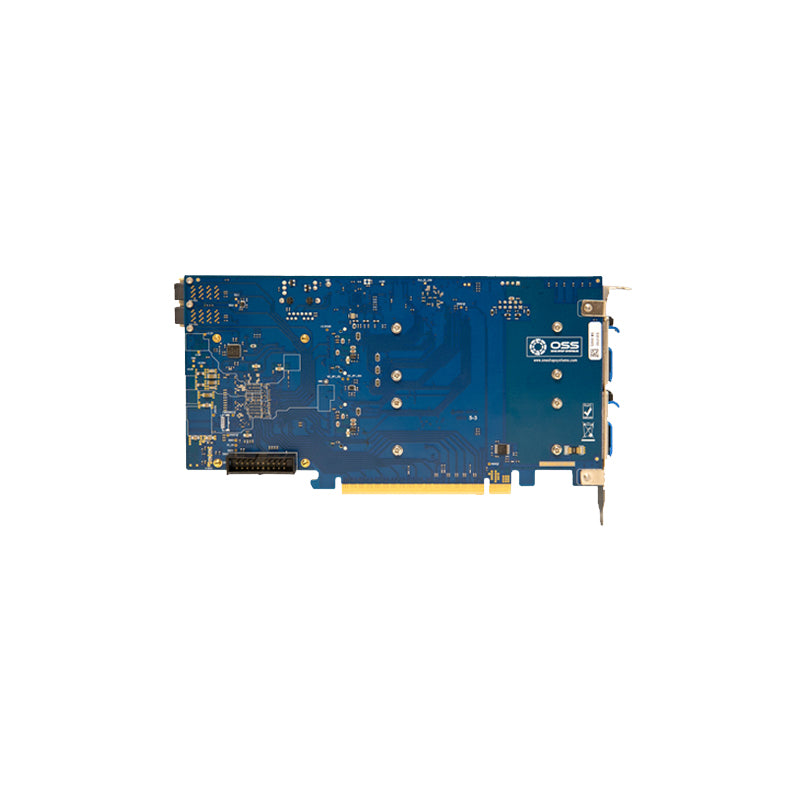

  • The PCIe 4.0 Dual M.2 Carrier add-in card supports dual PCIe 4.0 hot-swap M.2 drives in removable carriers and dual SFF-8643 connectors for additional NVMe expansion. The hot-swap removable carriers provide high-speed and high-capacity storage at PCIe 4.0 speed for edge applications. Data can be captured at up to 256Gb/s, then securely removed, transported, and hot-swapped into a separate compute node for data processing.

  • Features:

    • Dual PCIe 4.0 NVMe M.2 slots

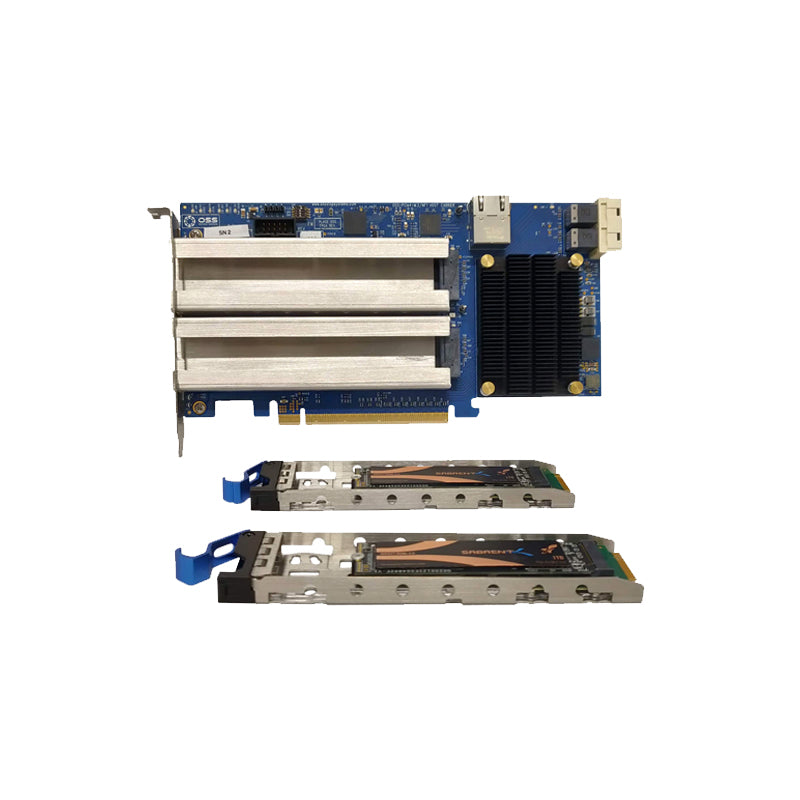

    • Hot-swap removable drive carriers
    • Operates at up to 256Gb/s at PCIe 4.0 speeds
    • Supports M.2 2242/2260/2280/22110/E1.S drives
    • Dual SFF-8643 connectors for additional PCIe 4.0 expansion options
    • Supports PCIe 3.0 backward compatibility
  • *Please log in to access the Manual.
