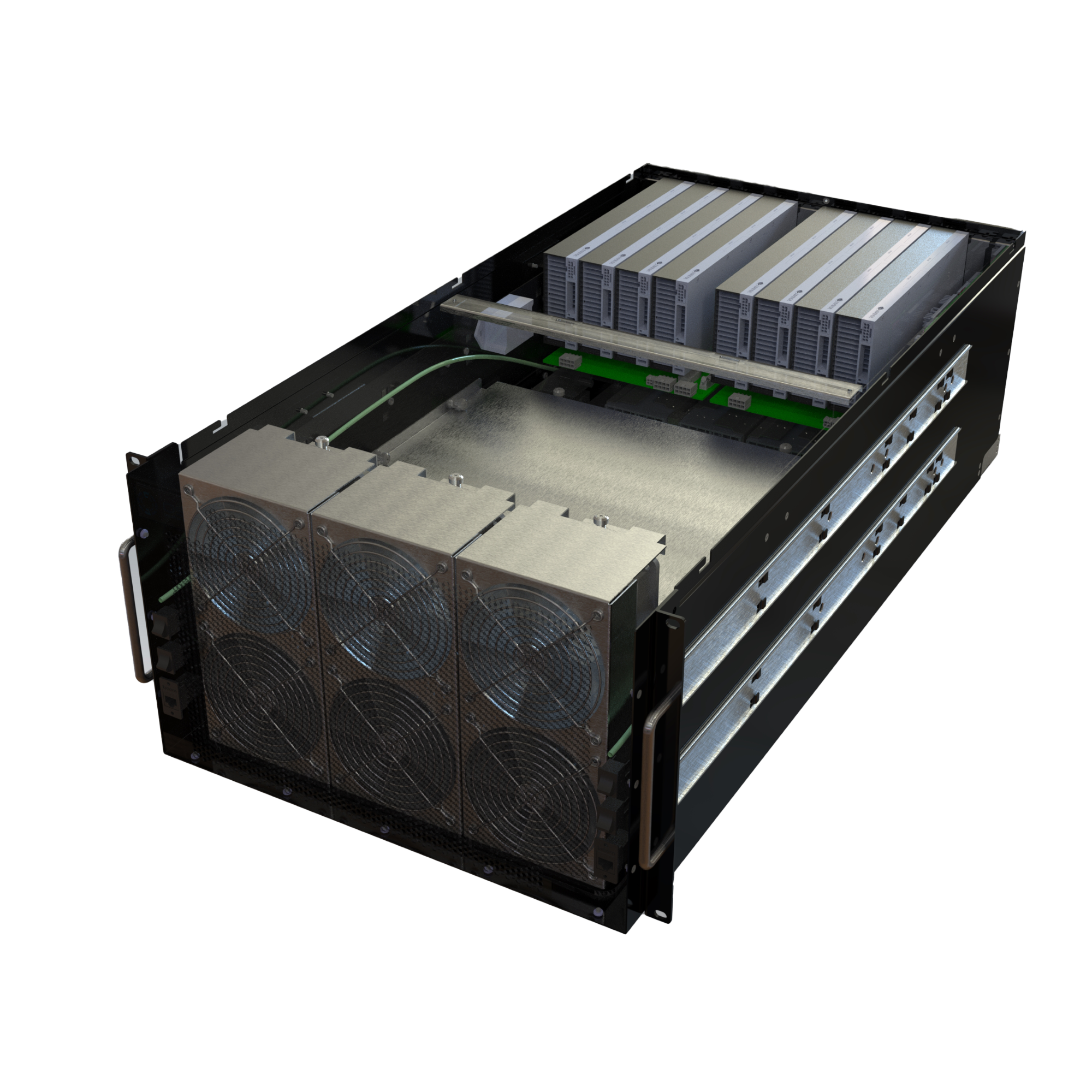

Ponto - 16-Way PCIe Expansion System
-
Ponto is a cutting-edge expansion system that sets new standards in high-performance computing. This powerhouse offers unparalleled flexibility with 16 dual-width, full-length PCIe 5 slots supporting the most advanced 675W accelerators. This is accomplished with an impressive 14kW power subsystem, making it one of the most power-dense, air-cooled systems available. With 4 configurable PCIe slot zones, Ponto supports over 1.6TB/s of total interconnect bandwidth with peer-to-peer latency under 115ns and two or four host uplinks. The OSS U-BMC manages, monitors and controls Ponto's advanced thermal management system (featuring six hot-swap, high-performance fans), dynamic power delivery system, switch configuration and advanced accelerator add-in card functions.
-
Features:
- PCIe Gen 5 architecture
- 16 double-wide accelerators or 32 single-wide AICs
- OSS developed U-BMC
- Dynamic fan speed control
- Configurable slot and host uplinks to optimize throughput
Specifications +
| Dimensions | 17.2” W x 10.50” H x 34.50” D | |
| Host Options |
• 1x PCIe x4 x16 Host-to-Target uplink (64GB/s)) • 2x PCIe x4 x16 Host-to-Target uplinks (128GB/s) • 4x PCIex4 x16 Host-to-Target uplinks (256 GB/s) |
|
| Backplane Options |
Quad OSS-580: • 4x single-width PCIe 5.0 x 16 FHFL upstream slots • 16x dual-width PCIe 5.0 x 16 FHFL downstream slots Quad OSS-581: • 4x single-width PCIe 5.0 x 16 FHFL upstream slots • 24x single-width PCIe 5.0 x8 FHFL downstream slots (x16 mechanical) • 38x single-width PCIe 5.0 x 16 FHFL downstream slots Dual OSS-580 & Dual OSS-581: • 4x single-width PCIe 5.0 x 16 FHFL upstream slots • 8x dual-width PCIe 5.0 x 16 FHFL downstream slots • 12x single-width PCIe 5.0 x8 FHFL downstream slots (x16 mechanical) • 4x single-width PCIe 5.0 x 16 FHFL downstream slots |
|
| Cooling | Operating temperature (16x 675W configuration): 0-25°C Operating temperature (16x 500W configuration): 0-35°C Storage Temperature: -40-71°C |
|
| Fans |
Hot-swappable fans: • 6x 400 CFM 48V 120mm fans at front of chassis • 4x 90 CFM 12V 60mm fans at rear of chassis |
|
| Power Supply |
• 4x hot-swap 3200W 12V • 1x 3600W 54V PSU |
|
| System Management | • OSS U-BMC (WebUI, SSH, Redfish®) • EdgeShield GPU Power-Fault Throttling Protection • Advanced PCIe Card Telemetry • Configurable PCIe switch topology |
|
| Management Access | • 2x RJ45 ports on front/rear panels | |
| PCIe 5.0 Cable Lengths | 1m, 2m, 3m | |
| Power Cords |
6’ US 110V C19 6’ US 240V C19 6’ US 240V C14 6’ UK 2’ IEC |
|
| Agency Compliance |
Agency Certifications (testing pending): • FCC Class A, CE Safety & Emissions, UL, cUL, RoHS3 |
|
