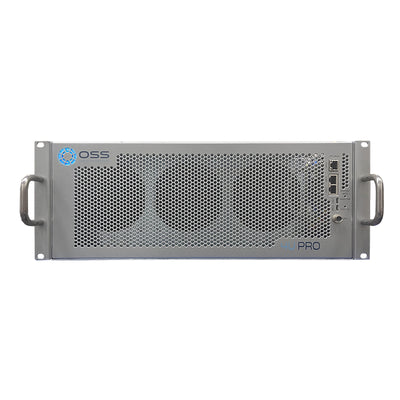

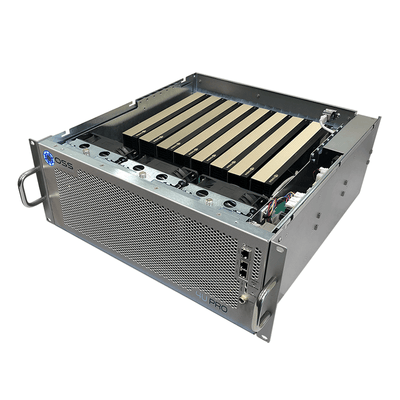

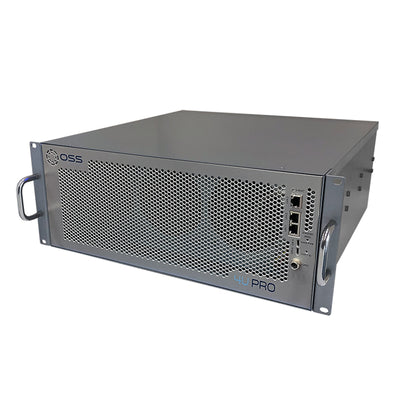

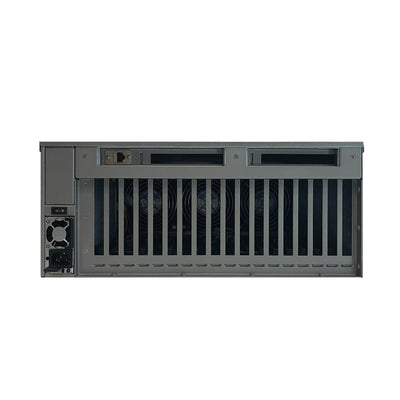

  • The 4U Pro combines the power of the latest PCIe Gen 5 add-in cards with an optimized, feature-rich, and rugged design for the most demanding HPC edge applications. The appliance supports up to 8 of the most advanced 675w Accelerators and four PCIe Gen 5 x16 HIB/NIC slots for up to 256GB/s of sustained data throughput. Alternatively, the 4U Pro can be configured to provide 16 single-width PCIe Gen 5 x8 slots for FPGA data ingest or the latest storage add-in cards. The Gen 5 4UP also includes the OSS developed U-BMC with value-add features including dynamic fan speed control and IPMI based system monitoring which integrates seamlessly with the host server system management. Additional features include solid and vented filler panel options (purchasable in quantities of 17 or 18) and replaceable fan filters. The chassis design is ‘rugged’ suitable to use outside a typical datacenter environment. The Gen 5 4UP is the ideal expansion platform for the entire AI workflow at the edge.

  • Features:

    • PCIe Gen 5 architecture
    • Rugged frame design
    • OSS developed U-BMC
    • Dynamic fan speed control
    • Configurable slot and host uplinks to optimize throughput
  • *Please log in to access these items.
  • Software:
    UBMC Discovery Tool - Windows
    UBMC Discovery Tool - LINUX
Request a quote/Contact us
Specifications +
Dimensions 17.2” W x 7.00” H x 21” D
Weight 38 lbs
Host Options 1x PCIe x4 x16 Host-to-Target uplink (64GB/s)
2x PCIe x4 x16 Host-to-Target uplinks (128GB/s)
4x PCIex4 x16 Host-to-Target uplinks (256 GB/s)
SmartNIC Host
Backplane Options

Single OSS-580:
     • 1x single-width PCIe 5.0 x 16 FHFL upstream slot
     • 4x dual-width PCIe 5.0 x16 FHFL downstream slots

Dual OSS-580:
     • 2x single-width PCIe 5.0 x 16 FHFL upstream slots
     • 8x dual-width PCIe 5.0 x16 FHFL downstream slots

Single OSS-581:
     • 1x single-width PCIe 5.0 x 16 FHFL upstream slot
     • 6x single-width PCIe 5.0 x16 FHFL downstream slots
     • 1x dual-width PCIe 5.0 x16 FHFL downstream slot

Dual OSS-581:
     • 2x single-width PCIe 5.0 x 16 FHFL upstream slot
     • 12x single-width PCIe 5.0 x16 FHFL downstream slots (6x per upstream)
     • 2x dual-width PCIe 5.0 x16 FHFL downstream slot (1x per upstream)

Additional Slot Options

Standard
     • Modifies one dual-width PCIe 5.0 x16 FHFL downstream slot to two single-width PCIe 5.0 x16 FHFL downstream slots per backplane

Riser
     • Adds and additional single-width PCIe 5.0 FHFL downstream slot per backplane

Linked
     • Links two backplanes together so all slots are downstream to a single upstream

Cooling Operational Temperature: 0-35°C
Operational Humidity: 10-90% relative humidity
Operational Altitude: 0-10,000 feet above sea level
Storage Temperature: -40°C - 71°C
Fans:
     • 3x 400CFM 120mm fans
     • Default PWM controlled based on built-in temperature sensors
Power Options Single/Dual AC 3200W
Single/Dual AC 2600W
Single/Dual AC 1600W
Single/Dual DC 1600W
System Monitoring Default - automatic dynamic temperature based fan speed control
Optional - IPMI system monitoring with power, temperature, and fan speed control and monitoring
Fan Filters Optional Quadrafoam 45 PPI Replaceable Fan Filters
PCIe 5.0 Cable Lengths 1m
2m
3m
Power Cords 6’ US 110V C19
6’ US 240V C19
6’ US 240V C14
6’ UK
2’ IEC
Agency Compliance Agency Certifications (testing pending):
FCC Class A, CE Safety & Emissions, UL, cUL, RoHS3
